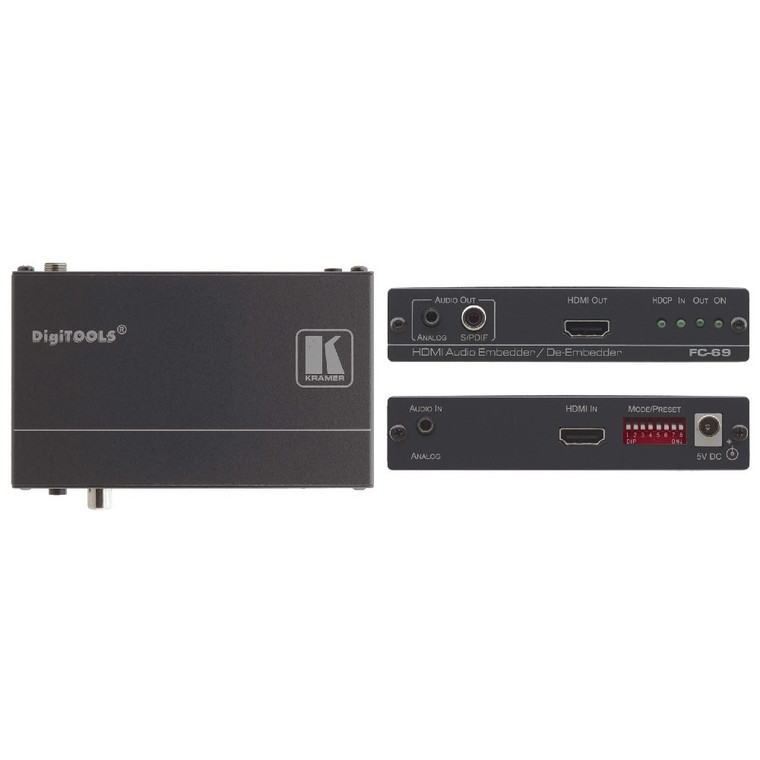

Kramer FC-69 4K60 4:2:0 HDMI Audio Embedder/De–Embedder
KramerPricing available upon request
FC−69 is a high−performance 4K@60Hz (4:2:0), 4Kx2K HDMI audio embedder and de−embedder. The unit can embed analog audio to the HDMI output or de−embed audio from the HDMI input or from the HDMI output Audio Return Channel to S/PDIF and unbalanced stereo audio outputs simultaneously.
- Max. Resolution — 4K@60Hz (4:2:0), 4Kx2K.
- Max. Data Rate — 8.91Gbps (2.97Gbps per data channel).
- HDTV Compatible.
- HDCP Compliant.
- HDMI Support — ARC, 7.1 PCM, deep color.
- Audio Embedding — Even without an HDMI source.
- Audio de–Embedding — To unbalanced analog and S/PDIF, selectable from input or ARC.
- Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
- Sleep Mode — 5V on the output, following the input, allows the display to turn off when no video is being sent.
- Preconfigured Control Options — DIP–switches control locking/modifying EDID, HDCP, embedding/de–embedding and sleep mode functionality.
Key Features
- Max Data Rate — 8.91Gbps (2.97Gbps per data channel)
- 4K@60Hz (4:2:0) UHD, 4Kx2K support
- Kramer Equalization & re–Klocking™ Technology
Technical Specifications
- Input: 1 HDMI on an HDMI connector, 1 analog stereo audio on a 3.5mm mini jack
- Outputs: 1 HDMI on an HDMI connector, 1 S/PDIF digital audio on an RCA connector, 1 analog stereo audio on a 3.5 mm mini jack
- Max Data Rate: 8.91Gbps (2.97Gbps per graphic channel), 1080p @60Hz, 36–bit Deep Color, supports 4K@60 UHD (4:2:0), 4Kx2K
- Audio THD+N: –75dB
- Compliance with HDMI Standard: Supports HDMI, HDCP
- Controls: 8–way DIP–switch
- Indicator LEDS: ON, IN, OUT, HDCP
- Power Source: 5V DC, 500mA
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Tem[erature: –40° to +70°C (–40° to 158°F)
- Humidity: 10% to 90%, RHL non–condensing
- Cooling: Convection
- Enclosure Type: Aluminum
- Rack Mount: With optional adapter
- Furniture Mount: With included rubber feet
- Vibration: ISTA 1A in carton (International Safe Transit Association)
- Regulatory Compliance: CE
- Environmental Regulatory Compliance: RoHs and WEEE
- Product Dimensions: 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
- Product Weight: 0.2kg (0.4lbs) approx.
- Shipping Dimensions: 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
- Shipping Weight: 0.5kg (1.0lbs) approx.
What's Included
- Power supply
- Product Type:
- Audio De–embedders
