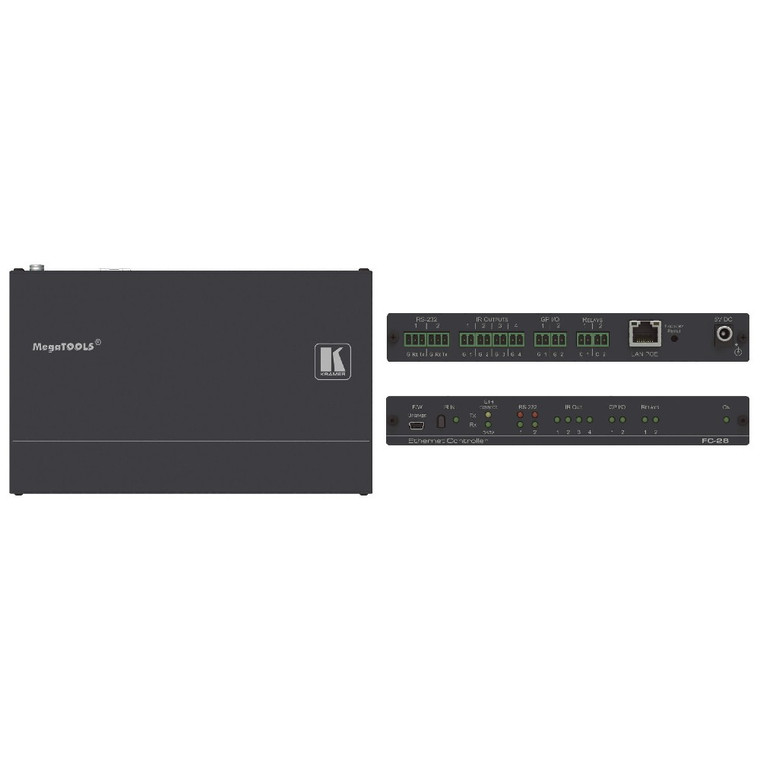

Kramer FC-28 10–Port Serial, IR, GPI/O & Relay, PoE Control Gateway

The FC−28 is a PoE−powered control gateway, capable of plug and play deployment over customer Ethernet LAN for remote control of customer controlled devices via bidirectional RS−232, IR, GPI/O and relay control connections. Multiple control clients can be IP−connected to the FC−28 control gateway for concurrent control of two RS−232,four IR controllable devices, such as AV scalers, video displays, audio amplifiers, DVD players, sensors, screens, shades, door locks, and lighting.

•  2 RS–232 Bi–directional Control Ports — Control a device via bi–directional serial control protocols.
•  4 IR Emitter Control Ports — Control a device via IR control protocols.
•  2 GPI/O Control Ports — Controls a device via general purpose I/O ports, program–configured as digital input, digital output or analog input interface for controlling sensors, door–locks, audio volume and light dim level, or lighting control devices.
•  2 Relay Control Ports — Control a device via relay contact closure, such as scrolling up and down screens, drapes, shades, and blinds.
•  Simultaneous IP Control Communication — With up to 40 IP control clients.
•  IR Sensor Port — Learns commands from IR remotes.
•  Mini USB Port — For firmware upgrades and local technical services.
•  1 Ethernet Control Port — Remote protocol–based control port.
•  PoE Support — Per IEEE 802.3af standard.
•  Built–in Web Pages — Remote browser–based control and support.
•  Easy Installation — Single Ethernet cable wires for communication and PoE powering, and plug & play IP auto–setup deployment for simple and cost–reducing installation.

Key Features

• 2 Bidirectional RS–232 ports
• 4 IR emitter ports
• 2 GPI/O ports
• 2 Relay ports
• 1 IR sensor for learning
• 1 Ethernet port
• Built–in control and support Web pages
• PoE powering
• Built–in control and support Web pages
  Size — MegaTOOLS™
• Supported by: Kramer Control, K–Touch and K–Config

Technical Specifications

• Outputs: 4 IR & relays on 2–pin terminal blocks
• Ports: 2 RS–232 serial on 3–pin terminal blocks, 2 GPI/O on 2–pin terminal blocks, 1 Ethernet on an RJ–45 connector, 1 mini USB connector for local services, 1 built–in IR sensor (for learning)
• Supported Serial Port Baud Rates: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps
• RS-232 Communication: Transparent up to 115200bps
• IR Emitter Cable Range: 80m (260ft)
• Supported IR Input Frequencies: 20kHz to 60kHz
• Supported IR Output Frequencies: 20kHz to 1.2MHz
• Maximum Data Handling of Device: Up to 150kbps summed on all ports
• POWER Consumption: 5V DC, 230mA
• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing
• Cooling: Convection
• Enclosure Type: Aluminum
• Rack Mount: With optional rack adapter
• Vibration: ISTA 1A in carton (International Safe Transit Association)
• Safety Regulatory Compliance: CE
• Environmental Regulatory Compliance: Complies with appropriate requirements of RoHs and WEEE
• Product Dimensions: 19.00cm x 11.60cm x 2.70cm (7.48" x 4.57" x 1.06" ) W, D, H
• Product Weight: 0.5kg (1.0lbs) approx.
• Shipping Dimensions: 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
• Shipping Weight: 1.0kg (2.1lbs) approx.

What's Included

• Power adapter
• IR Cable C–A35M/IRE–10
