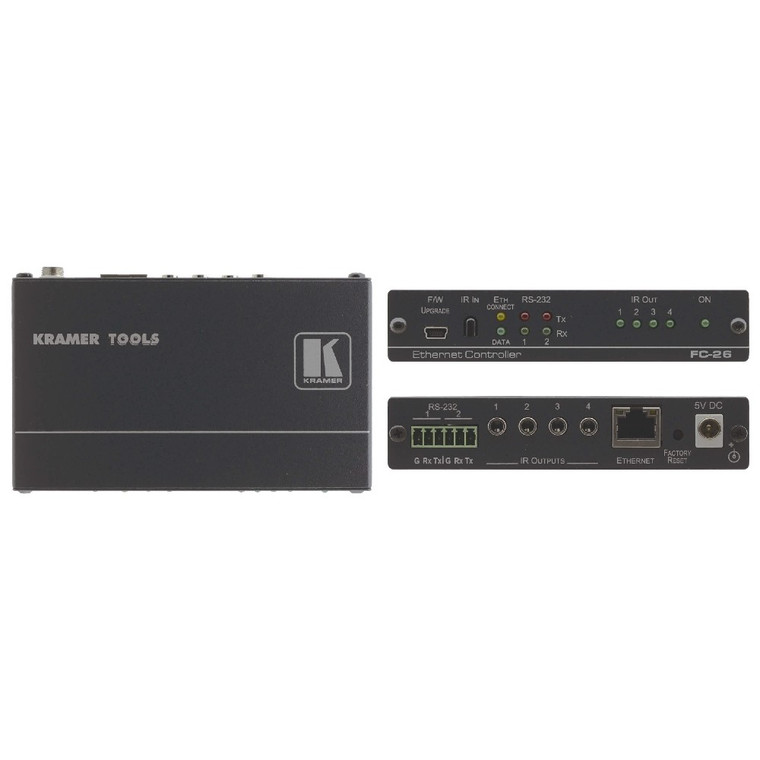

Kramer FC-26 6–Port Serial & IR, PoE Control Gateway

The FC−26 is a PoE−powered control gateway, capable of plug and play deployment over a customer Ethernet LAN for remote control of customer controlled devices via bidirectional RS−232 and IR control connections. Multiple control clients can be IP−connected to the FC−26 control gateway for concurrent control of two RS−232 and four IR controllable devices, such as AV scalers, video displays, audio amplifiers, and DVD players.

•  2 RS–232 Bidirectional Control Ports — Control a device via bidirectional serial control protocols.
•  4 IR Emitter Control Ports — Control a device via IR control protocols.
•  1 Ethernet Control Port — Remote protocol–based control port.
•  Built–in Web Pages — Remote browser–based control and support.
•  Simultaneous IP Control Communication — With up to 40 IP control clients.
•  IR Sensor Port — Learns commands from IR remotes.
•  Mini USB Port — For firmware upgrades and local technical services.
•  PoE Support — Per IEEE 802.3af standard.
•  Easy Installation — Single Ethernet cable wires for communication and PoE powering, and plug & play IP auto–setup deployment for simple and cost–reducing installation.

Key Features

• 2 Bidirectional RS–232 ports
• 4 IR emitter ports
• 1 IR sensor for learning
• 1 Ethernet port
• PoE powering
• Built–in control & support web pages
• Supported by: Kramer Control, K–Touch and K–Config

Technical Specifications

• Outputs: 4 IR on 3.5mm mini jacks
• Ports:

  • 2 RS–232 serial on 3–pin terminal blocks, 1 Ethernet on an RJ–45 connector, 1 mini USB connector for local
  • services, 1 built–in IR sensor (for learning)
• Supported Serial Port Baud Rates: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps
• RS-232 Communication: Transparent up to 115200bps
• IR Emitter Cable Range: 80m (260ft)
• Supported IR Input Frequencies: 20kHz to 60kHz
• Supported IR Output Frequencies: 20kHz to 1.2MHz
• Maximum Data Handling of Device: Up to 150kbps summed on all ports
• Power Consumption: 5V DC, 230mA
• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing
• Cooling: Convection
• Enclosure Type: Aluminum
• Rack Mount: With optional rack adapter
• Vibration: ISTA 1A in carton (International Safe Transit Association)
• Safety Regulatory Compliance: CE
• Environmental Regulatory Compliance: Complies with appropriate requirements of RoHs and WEEE
• Product Dimensions: 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
• Product Weight: 0.2kg (0.4lbs) approx.
• Shipping Dimensions: 49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15" ) W, D, H
• Shipping Weight: 0.4kg (0.9lbs) approx.

What's Included

• Power adapter
• IR Cable C–A35M/IRE–10
