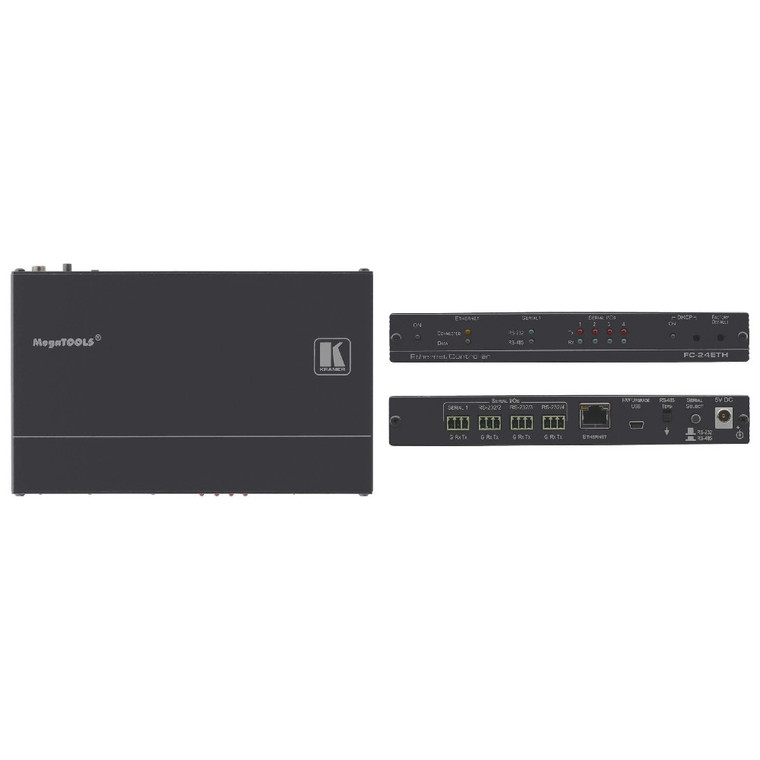

Kramer FC-24ETH 4–Port Serial Control Gateway

The FC−24ETH is an Ethernet control gateway, capable of plug and play deployment over a customer Ethernet LAN for remote control of customer controlled devices via bidirectional RS−232 or RS−485 serial control connections. Multiple control clients can be IP−connected to the FC−24ETH control gateway for concurrent control of two RS−232 or RS−485 controllable devices, such as AV scalers, video displays, and audio amplifiers.

•  1 RS–485 or RS–232 Selectable Bidirectional Control Port — Controls a device via bidirectional serial control protocols.
•  3 RS–232 Bidirectional Control Ports — Control devices via bidirectional RS–232 serial control protocols.
•  1 Ethernet Control Port — Remote protocol–based control port.
•  Built–in Web Pages — Remote browser–based control and support.
•  Simultaneous IP Control Communication — With up to 40 IP control clients.
•  Mini USB Port — For firmware upgrades and local technical services.
•  Easy Installation — Plug & play IP auto–setup deployment for simple and cost–reducing installation.

Key Features

• 1 Bidirectional RS–485 or RS–232 port
• 3 Bidirectional RS–232 ports
• 1 Ethernet port
• Built–in control and support Web pages
• Supported by: Kramer Control, K–Touch and K–Config

Technical Specifications

• Ports: 1 RS–232/RS–485 selectable and 3 RS–232 serial on 3–pin terminal blocks, 1 Ethernet on an RJ–45 connector, 1 mini USB connector for local services
• Supported Serial Port Baud Rates: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps
• RS-232 Communication: Transparent up to 115200bps
• Maximum Data Handling of Device: Up to 150kbps summed on all ports
• Controls: Serial Select button, RS–485 terminator switch, DHCP and Factory Default buttons
• Indicators: Power, Ethernet, Serial 1, Serial I/O, and DHCP status LEDs
• Power Consumption: 5V DC, 200mA
• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing
• Cooling: Convection
• Enclosure Type: Aluminum
• Vibration: ISTA 1A in carton (International Safe Transit Association)
• Safety Regulatory Compliance: CE
• Environmental Regulatory Compliance: Complies with appropriate requirements of RoHs and WEEE
• Product Dimensions: 19.00cm x 11.60cm x 2.70cm (7.48" x 4.57" x 1.06" ) W, D, H
• Product Weight: 0.4kg (1.0lbs) approx.
• Shipping Dimensions: 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
• Shipping Weight: 0.7kg (1.5lbs) approx.

What's Included

• Power adapter
