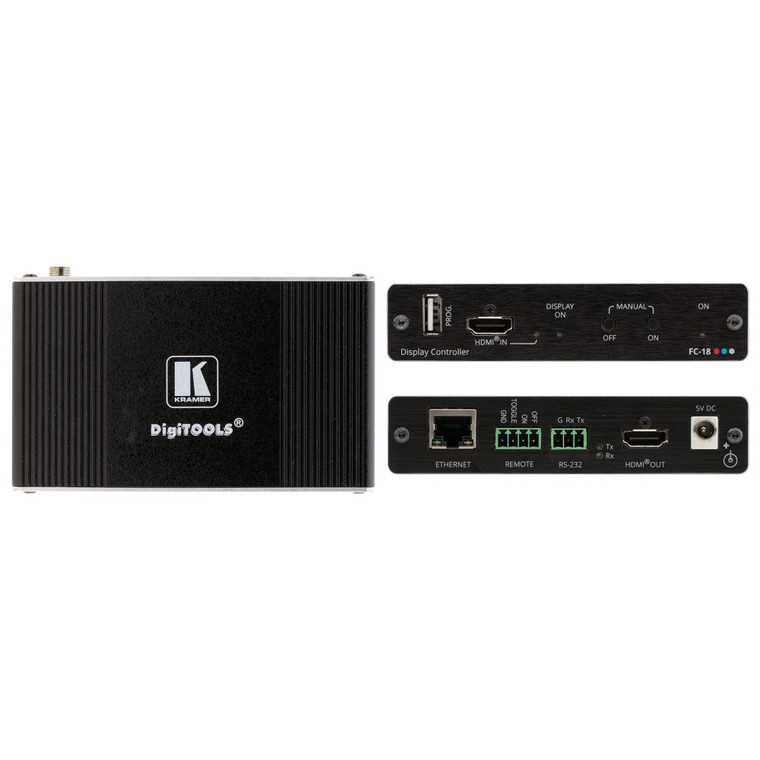

FC−18 is a display ON/OFF controller for 4K@60Hz (4:4:4) HDR HDMI signals. It accepts and outputs an HDMI signal after reclocking and equalizing. On detection of the onset of an input signal FC−18 sends an ON command to the display or projector and on detection of the loss of the input signal FC−18 sends an OFF command. FC−18 can also be used to control a display device manually via front panel buttons, Ethernet or contact closure switches.
- Save on Power Costs — Shut down display devices automatically when not in use.
- Facilitate Meeting Setups — Just plug in the AV source and the display screen or projector automatically turn on. No more searching for the power button.
- High–Performance HDMI Acceptor — Supports 4K@60Hz (4:4:4) HDR10, HDCP 2.2/1.4 signals at 18G (6G per channel) data rate, CEC (by–pass), Dolby Vision (by–pass) as specified in HDMI 2.0.
- Variety of Automatic Control Formats — Commands are sent to the display device via CEC, RS–232, or Ethernet.
- Variety of Manual Control Formats — Manually turn the display device ON and OFF via front panel button and RS–232/CEC commands, Ethernet, contact closure switches.
- Data Tunneling — Supports data tunneling between the RS–232 port and the Ethernet ports.
- HDCP Compliance — HDCP 1.4 and 2.2.
- Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances.
- Selectable EDID Options — Default (internal), external (sink) or user–defined.
- Firmware Upgrading via USB port.
- Easy Installation — Compact DigiTOOLS® fan–less enclosure for surface mounting or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.
Key Features
- Automatically turn display ON/OFF on plug in/out
- Save meeting setup time
- Save power costs
- Ethernet and RS–232 tunelling
Technical Specifications
- Inputs: On a female HDMI connector
- Outputs: On a female HDMI connector
- Ports:
- 1 Ethernet: On an RJ–45 connector
- 1 RS-232: On a 3–pin terminal block
- 1 USB: On a female USB type–A connector
- Video:
- Max. Resolution: 4K@60Hz (4:4:4)
- Content Protection: HDCP 1.4 / 2.2
- HDMI Support: CEC (by–pass), Dolby Vision (by–pass) as specified in HDMI 2.0
- User Interface:
- Control: Manual ON and OFF buttons
- Indicators: Display ON/OFF status, RS–232 communication and power LEDs
- Power:
- Source: 5V DC
- Consumption: 580mA
- Environmental Conditions:
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: –40° to +70°C (–40° to 158°F)
- Humidity: 10% to 90%, RHL non–condensing
- Product Dimensions: 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
- Product Weight: 0.2kg (0.5lbs) approx.
- Shipping Dimensions: 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
- Shipping Weight: 0.8kg (1.8lbs) approx.
What's Included
- Power adapter
- Bracket set
