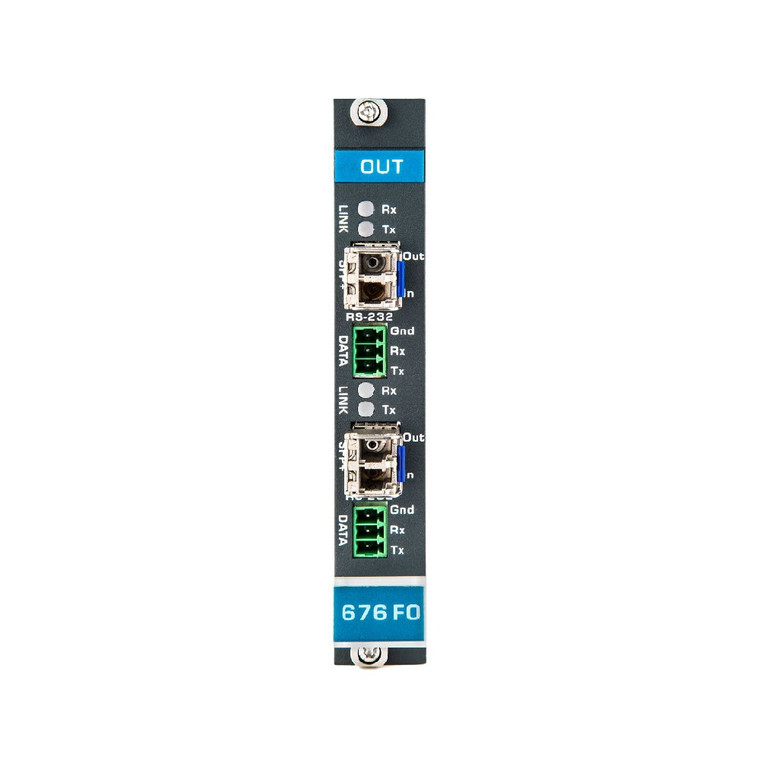

Kramer F676-OUT2-F16 4K60 4:2:0 HDMI Over Ultra–Reach MM/SM Fiber Optic Output Card

F676-OUT2-F16 is a high-performance HDMI fiber optic modular matrix output card for ultra-reach extension of 4K@60Hz (4:2:0) HDMI signals. Designed for the VS-1616DN-EM modular matrix, F676-OUT2-F16 converts HDMI and RS-232 input signals to an optical signal that is transmitted over a fiber optic cable to a compatible receiver that converts it back to HDMI and RS-232 signals. F676-OUT2-F16 includes a multi-mode SFP+ transceiver, but can be used with any Kramer certified SFP+ transceiver, such as a single-mode SFP+ transceiver.

• High Performance Standard Fiber Extender - HDMI fiber transmitter for providing ultra-reach signals over either multi-mode or single-mode optical fiber infrastructures, using Kramer pluggable OSP SFP+ units (multi-mode SFP+ included). Near-zero latency video chroma sub-sampling conversion technology, is employed to auto-adapt above 10G HDMI signals to 10G optical link signal data-rate. Note:To ensure specified performance, support, and warranty of this product, use only Kramer's certified hi-performance OSP SFP+ pluggable optical units
• HDMI Signal Extension - HDCP 2.2 Compliant and supports up to 10.2G (3.4G per channel) data rate, LPCM 7.1, Dolby True HD, and DTS-HD
• I-EDIDPro Kramer Intelligent EDID Processing - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems
• Bidirectional RS-232 Extension - Serial interface data flows in both directions, to enable data transmission and control of devices
• Cost-Effective Maintenance - Fiber link connection LEDs facilitate easy local troubleshooting

Key Features

• Multi–mode or single–mode fiber
• Video resolution — Up to 4K@60 (4:2:0)
• Control extension
• Up to 33km ultra–reach extension

Technical Specifications

• Specifications:

  • Maximum Operating Temperature: +40°C
  • Special Features: Cost-Effective MaintenanCE, Fibre Link Connection LEDs Facilitate Easy Local Troubleshooting
  • Power Rating: 9W
  • For Use With: VS-1616DN-EM Modular Matrix
  • Applications: Highly Secured and Ultra-Long Extension of Controllable AV Signals For:Governmental/Medical/and Rental and Staging, Point-to-Multipoint Optical Distribution Of Controllable AV Signals Over Large Spaces, Multipoint-to-Multipoint Optical Distribution of Con
  • Humidity: 10 to 90%
  • Minimum Operating Temperature: 0°C
• Performance:
  • Resolution: 4096x2160pixels@60Hz, 4K@60 4:2:0
  • Bandwidth: 10.2Gbps
• Inputs and Ports:

  • Port Type: 2xRS-232 on a 3 pin Terminal Block Connector
  • Card Slot Type: HDMI
• Dimensions:

  • Length: 13cm
  • Width: 19cm
  • Height: 2cm
  • Weight: 0.2kg
  • Shipping Weight: 0.3kg
• Other:

  • Standards Met: CE, UL, RoHs, WEEE

What's Included

• 2mm SFP+ Transceivers
