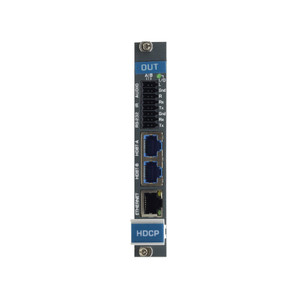

Kramer DTAXRD2-OUT2-F34 2-Channel 4K HDR HDMI Over Extended Reach HDBaseT Output Card with Analog Audio

DTAxrD2-OUT2-F34 is a two-channel, 4K@60Hz (4:4:4), DSC, HDMI, analog audio, bidirectional RS-232, Ethernet, & IR over HDBaseT twisted pair transmitter card for compatible Kramer Modular Multi-Format Digital Matrix Switchers. DTAxrD2-OUT2-F34 outputs two extended-reach HDBaseT signals with selectable embedded/de-embedded analog audio, bidirectional RS-232, IR, and Ethernet from the chassis to the line.

Key Features

• Max. Data Rate - 18Gbps (6Gbps per graphics channel), 10Gbps DSC over CAT cable.
• Max. Resolution - 4K@60Hz (4:4:4).
• PoE Provider — Provides power over Ethernet to connected devices..
• Analog Audio Embedding/De-embedding or ARC - On the same jack.
• HDBaseT Technology - HDTV compatible, HDCP 2.2/1.4 Compliant.
• System Range - Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp). Note:When using Kramer HDBaseT cables.
• Ethernet Extension - Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
• Bidirectional RS-232 Extension:- Serial interface data flows in both directions, allowing data transmission and device control.
• Bidirectional Infrared Extension:- IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
• 3D Pass-Through.
• PoE (Power over Ethernet) Enabled — Provides PoE power to a connected device with the Kramer PoE Power Supply Add–On PS–4812 (sold separately).

Technical Specifications

• Specifications:

  • Maximum Operating Temperature: +40°C
  • Special Features: HDBaseT Technology, HDTV compatible, HDCP 2.2/1.4 Compliant
  • Power Rating: 21.5W
  • For Use With: Modular MultiFormat Digital Matrix Switcher
  • Humidity: 10 to 90%
  • Minimum Operating Temperature: 0°C
• Performance:

  • Resolution: 4K@60Hz (4:4:4)
  • Bandwidth: 18Gbps (6Gbps per Graphic Channel), 10Gbps DSC Over CAT cable
  • Maximum Size Range: Up to 100m@Normal Mode (4K), Up to 130m@Normal Mode (2k), Up to 180m Ultra Mode (1080pixels@60Hz@24bpp)
• Inputs and Ports:

  • Port Type: 2 HDBaseT : On RJ45 Connector, 2 Unbalanced Audio : On a 6-Pin Terminal Block Connector
  • Card Slot Type: HDMI
• Dimensions:

  • Length: 13cm
  • Width: 25cm
  • Height: 2cm
  • Weight: 0.2kg
• Other:

  • Standards Met: CE, Complies with Appropriate Requirements of RoHs and WEEE
