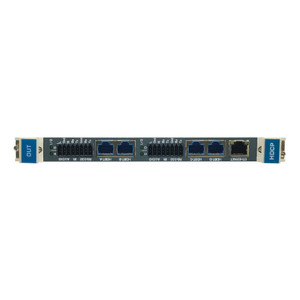

Kramer DTAXR-OUT2-F16 2–Channel 4K60 4:2:0 HDMI Over Extended Reach HDBaseT Output Card with Selectable Embedded or De–embedded Analog Audio

DTAxr−OUT2−F16 is a two−channel HDMI, analog audio, bidirectional RS−232, Ethernet, & IR over HDBaseT twisted pair transmitter card for the VS−1616 Series Modular Multi−Format Digital Matrix Switchers. The DTAxr−OUT2−F16 outputs two extended reach HDBaseT signals with selectable embedded/de–embedded analog audio, bidirectional RS−232, IR, and Ethernet from the chassis to the line.

•  Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
•  Max. Resolution — 4K@60Hz (4:2:0).
•  Analog Audio Embedding/De–embedding — On the same jack
•  HDBaseT Technology — HDTV compatible, HDCP compliant.
•  System Range — Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp). Note: When using Kramer HDBaseT cables.
•  Ethernet Extension — Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
•  Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
•  Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
•  3D Pass–Through.

Technical Specifications

• Outputs:

  • 2 HDBaseT TP on RJ–45 connectors
  • 2 Unbalanced audio on a 16 pin terminal block
• Ports:

  • 2 RS–232 and 2 IR on a 10 pin terminal block for bidirectional RS–232 and IR extension
  • 1 Ethernet on an RJ–45 connector for bidirectional Ethernet extension
• Bandwidth Per Channel:

  • Video: 3.4Gbps
  • Serial Data: 115200
• Total Bandwidth:

  • Video: 10.2Gbps
  • Serial Data: 115200
• Maximum Range:

  • Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp)
  • Note: When using Kramer HDBaseT cables
• 3D Pass Through: Supported
• Extended Ethernet: Up to 100Mbps extended line rate bandwidth
• Extended RS-232: 300 to 115200 baud rate
• Power Consumption: 13W
• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing
• Standard Compliance: HDCP 1.4, HDMI 1.3a, HDBaseT
• Safety Regulatory Compliance: CE
• ENVIRONMENTAL Regulatory Compliance: Complies with appropriate requirements of RoHs and WEEE
• Product Dimensions: 19.00cm x 13.00cm x 2.00cm (7.48" x 5.12" x 0.79" ) W, D, H
• Product Weight: 0.2kg (0.4lbs) approx.
• Shipping Dimensions: 24.20cm x 16.80cm x 6.00cm (9.53" x 6.61" x 2.36" ) W, D, H
• Shipping Weight: 0.3kg (0.7lbs) approx.
