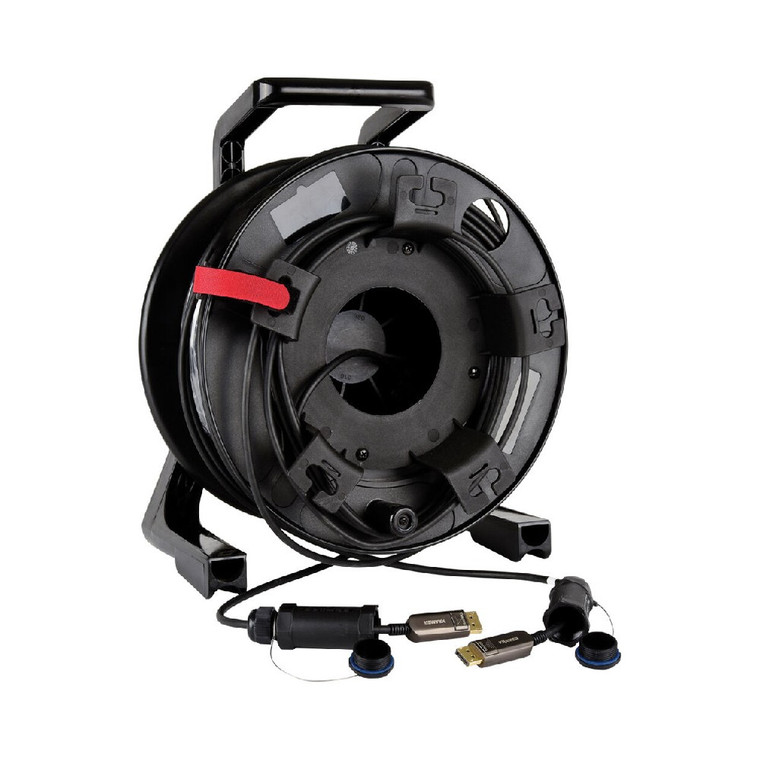

Kramer CRS-PlugNView-DP-164 Active Optical Armored 4K Display Port Cable (164')

Kramer CRS-PlugNView-DP-164 Active Optical Armored 4K Display Port Cable (164')

Kramer
SKU:
97-2410164

Pricing available upon request

Current Stock:
Description

Designed for the harshest use and abuse expected from rental and road applications, the Kramer Active Optical Armored 4K DisplayPort Cable supports resolutions up to 4K @ 60 Hz. The active optical cable (AOC) also supports a data transfer rate of up to 32 Gb/s. The cable doesn't require an external power supply. The cable is dispensed from a solid, mobile plastic spool.

High Resolution over Long Range

This active cable supports resolutions up to 4K @ 60 Hz over long cable runs up to 164'.

High Data Transfer Rate

This active cable can support a data transfer rate of up to 32 Gb/s.

No External Power Required

Powers the active units via the DisplayPort connector with a power consumption of less than 0.5W for each end.

Supported Features

  • HDCP 1.4/2.2
  • HDR10
  • HLG
  • Dolby Vision
  • Deep Color
  • x.v.Color
  • 5.1/7.1 lossless Dolby TrueHD
  • DTS-HD Master Audio
  • EDID

Extremely Durable

The integrated. stainless steel, corrugated tube with Kevlar reinforcement protects the internal optical fibers. A TPU jacket, heavy-duty connectors, and the robust waterproof and impact-resistant connector covers ensure high pulling strength and compression load. The cable is dispensed from a solid, mobile plastic spool.

Key Features

  • Supports up to 4K @ 60 Hz
  • Up to 32 Gb/s Data Transfer Rate
  • No External Power Required

Technical Specifications

  • Connector 1: 1x DisplayPort Male
  • Connector 2: 1x DisplayPort Male
  • Cable Length: 164' / 50 m
  • Active/Passive: Active
  • Maximum Resolution Support: 7680 x 4320 at 60 Hz
  • Color: Black
  • Certifications: CE, FCC, HDCP 2.2, RoHS2011/65 EU
Additional Information
Product Type:
Cables & Connectors
