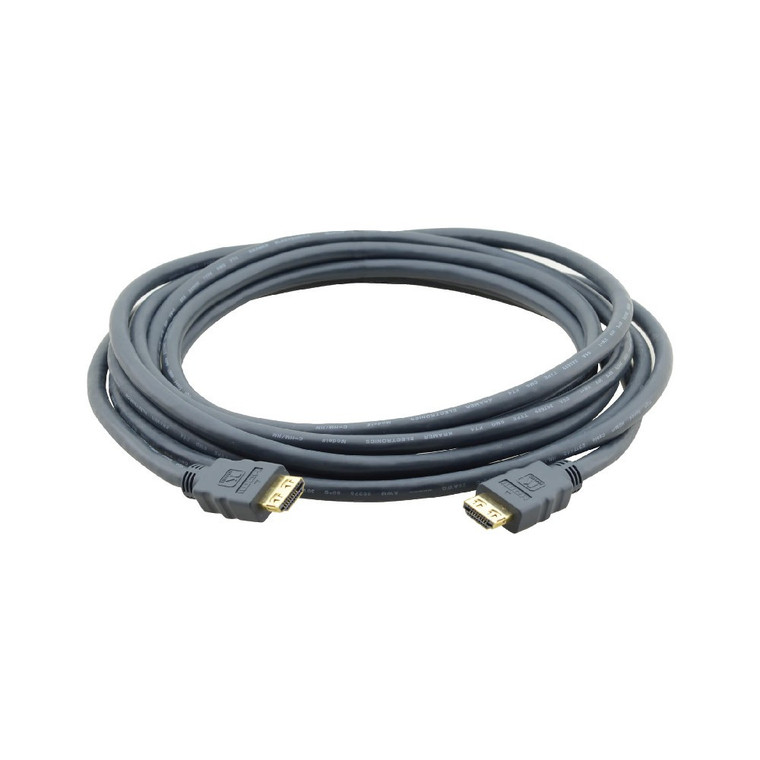

Kramer CLS-HM/HM/ETH-6 High–Speed HDMI Cable with Ethernet — Low Smoke & Halogen Free (6')

Kramer's CLS−HM/HM/ETH is a high−performance HDMI cable with Ethernet having molded HDMI connectors at both ends. It supports HDMI Ethernet Channel, Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS−HD and CEC. The CLS Series is low smoke and halogen free.

•  Quality Performance — Kramer’s new High Definition Multimedia Interface (HDMI) cables provide an uncompressed digital link between consumer electronics equipment such as DVD players, set–top boxes and audio/video monitors such as plasma display screens for high–definition TVs.
•  High–Quality Connectors — 24k gold–plated connectors resist corrosion, and offer the best possible connectivity.
•  Low Smoke, Halogen Free.
•  Varied Selection of Lengths — Available in versions of 0.9 to 15.2m (3, 6, 10, 15, 25, 35 and 50ft).

Key Features

• Lengths — 0.9–15.2m (3–50ft)
• HDMI Compliant

Technical Specifications

• Video:

  • Max Resolution for 3-15ft (0.9-3.0m) lengths: 4K60hz (4:4:4)
  • Max Resolution for 25-35ft (4.6-10.7m) lengths: 4K60Hz (4:2:0)
  • Max Resolution for 50ft (15.2m) lengths: 1080p
  • Max Data Rate for 3-15ft (0.9-3.0m) lengths: 18Gbps (6 Gbps per channel)
  • Max Data Rate for 25-35ft (4.6-10.7m) lengths: 10.2Gbps (3.4 Gbps per channel)
  • Max Data Rate for 50ft (15.2m) lengths: 4.95Gbps (1.65 Gbps per channel)
  • HDMI Support: HDCP 2.2, EDID, CEC, HDR–10, HLG, Dolby Vision
• Supported Audio Formats: Dolby Digital Plus, Dolby TrueHD, DTS–HD Master Audio™, DVD Audio, SA–CD
• Physical:

  • Connectors: 2 Male HDMI Type A, 24K gold–plated K–Lock connector
  • Bending Radius for 3-35ft (0.9-10.7m) lengths: 80mm
  • Bending Radius for 50ft (15.2m) lengths: 90mm
• Conductors:

  • Diameter for 3-35ft (0.9-10.7m) lengths: 28AWG (7/0.127)
  • Diameter for 50ft (15.2m) lengths: 26AWG(7/0.160)
  • Material: Bare Copper
• Jacket:

  • Material: TPE
  • Color: Gray
  • Diameter for 3-35ft (0.9-10.7m) lengths: 8.0 ± 0.20mm
  • Diameter for 50ft (15.2m) lengths: 9.0 ± 0.25mm
• Electrical:

  • Temperature Rating: 80⁰C
  • Voltage Rating: 30V
  • Conductor Resistance for 28AWG: 237.3Ω/KM MAX. at 20℃
  • Conductor Resistance for 26AWG: 148Ω/KM MAX. at 20℃
• Regulatory:

  • Rating (NEC/UL/CSA): VW–1
  • RoHS: 2011/65/ EU
  • Low Smoke & Halogen Free: IEC 60332–1, IEC 60754–1
