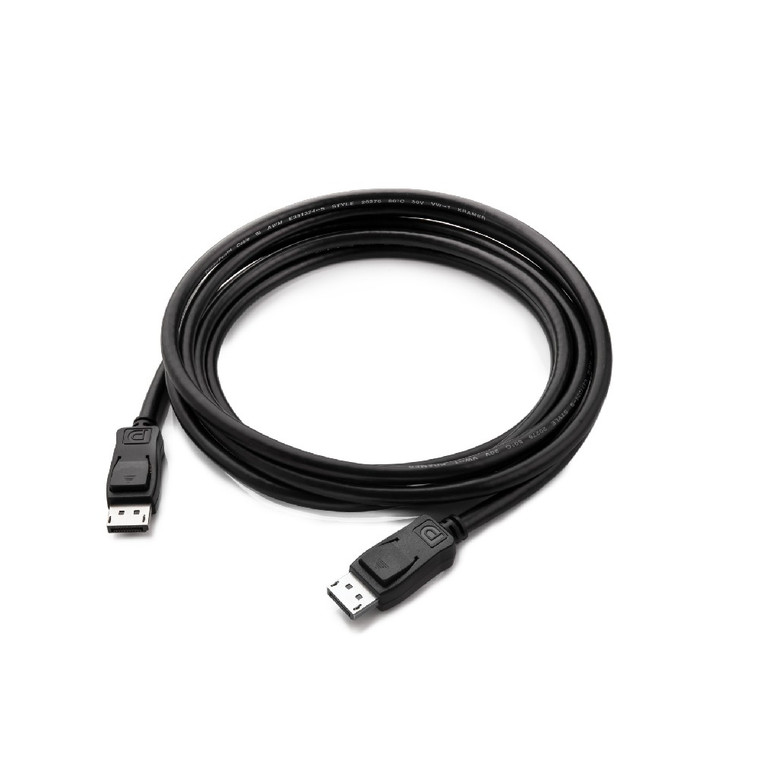

C−DPU is a high−resolution DisplayPort cable for video signals up to 8K@60Hz resolution (7680 × 4320) supporting the DisplayPort 1.4 standard. C−DPU supports an HBR3 (High Bit Rate 3) bandwidth of up to 32.4 Gbps (8.1 Gbps per channel). The cable is triple shielded for superior noise immunity.
- High–Performance Professional Cable — supports resolutions up to 8K@60Hz and an HBR3 (High Bit Rate 3) bandwidth of up to 32.4 Gbps.
- Content Protection Support — DPCP (DisplayPort Content Protection) and HDCP 2.2.
- Daisy Chain Multiple Monitors — With MST (Multi–Stream) support.
- Display Stream Compression 1.2–DSC
- Secure Connections — Includes molded DisplayPort connectors with latches.
- Quality Construction — Triple shielded for superior noise immunity.
- Backward Compatibility — Compatible with DisplayPort 1.2 and 1.1.
- Varied Selection of Lengths — Available in versions of 0.9 to 3.0m (3 to 10ft).
Key Features
- Max. Resolution — 8K@60Hz
- Max. Data Rate — 32.4 Gpbs
- Triple shielded
- Varied lengths available
Technical Specifications
- Video:
- Resolutions: Supports all VESA resolutions up to 8K@60Hz
- Max. Data Rate: 32.4Gbps (8.1 Gbps per channel)
- Male DisplayPort Connectors: Gold plated pins–15u, nickel plated shell
- Screening Type: Triple Shielding (eliminates RF and EM interference)
- Size: 28AWG
- Jacket:
- Material: PVC
- Diameter: 7.3 ± 0.19mm
- Average Thickness: 0.77mm
- Color: Black
- Electrical:
- Voltage Rating: 30V
- Temperature Rating: 80°C
- Dielectric Strength: AC — 750V/1sec MIN
- Insulation Resistance: FOAM–SKIN–PE,PE:DC–500V 100 MΩ/KM MIN. at 20℃
- Conductor Resistance: 237.3Ω/KM MAX. at 20℃
- Differential Impedance: 100±5Ω
- Intra Pair Skew: 50ps/4m
- Inter Pair Skew: 2ns/4m
- Regulatory Compliance (Standards Compliance)
- Rating: VW–1
- RoHS: 2
