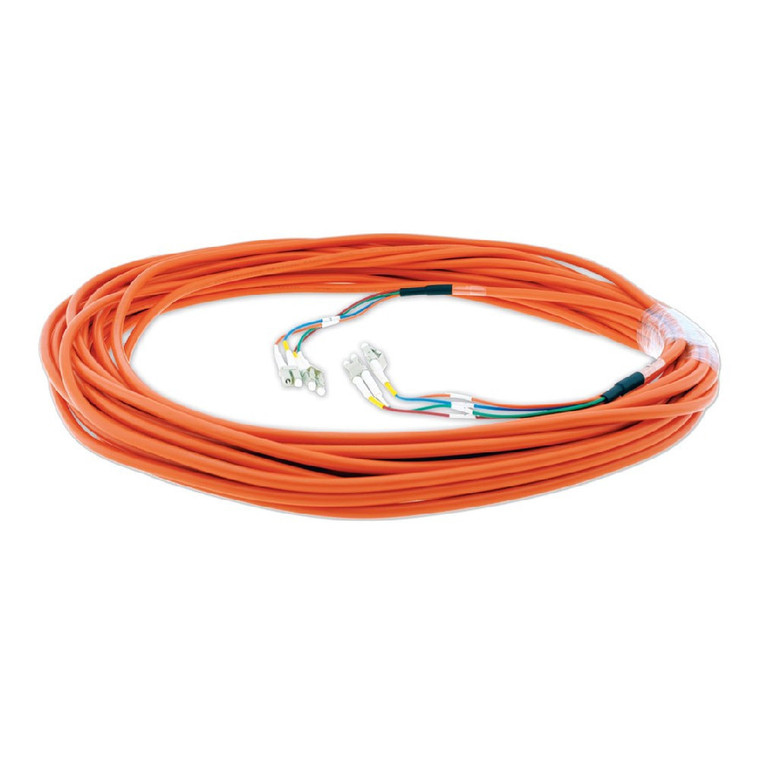

Kramer C-4LC/4LC-984 4 LC Fiber Optic Breakout Cable (984')
KramerPricing available upon request
Kramer’s C−4LC/4LC is constructed of four color coded multi−mode 50/125um simplex cables of 2.0mm (0.079in) diameter each, contained in a round overall orange jacket. It is intended primarily as a companion to various Kramer detachable transmitter/receiver sets.
- Quality Construction — Multimode optical fiber with an operating wavelength of 850nm. Sub–cables are color coded: red, green, blue and orange, terminated with the popular LC connectors for easy installation and are shipped with dust caps at the ends.
- Numerous Applications — Use these cables to connect our optical transmitter and receivers for DVI and HDMI, such as: 610T/R, 621T/R and 631T/R.
- Varied Selection of Lengths — Available in versions of 33 to 1640ft (10 to 500m).
Key Features
- Lengths — 10–500m (33–1640ft)
Technical Specifications
- Fiber: Multimode 50/125μm optical fiber
- Fiber Cord: PVC (OFNR) 2.0 x 4
- Outer Diameter: 7.0mm (0.275in), orange
- Operating Wavelength: 850nm
- Insertion Loss: 0.3dB
- Temperature: –40° to 80°C (–40° to 176°F)
- Product Type:
- Cables & Connectors
