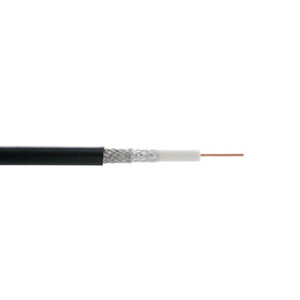

Kramer BC-RG63G-305M 1 Coax RG–6 Broadcast Quality Optimized for 3G HD–SDI Bulk Cable (305m)

Kramer's BC−RG63G is a high−performance broadcast−grade RG−6 cable for 3G HD−SDI applications. It has been optimized for the Sierra Aspen 3G HD−SDI routers that have a system range of 500ft.

•  Quality Construction — 18AWG solid center conductor and dual shield design consisting of aluminum braid and dual aluminum Mylar foil. Rugged and flexible with low attenuation. Tested to 3G.
•  Universal Compatibility — Compatible with Kramer’s compression connectors as well as typical crimp systems.

Technical Specifications

• Conductors:

  • Material: Bare copper
  • Construction: 18AWG (1/18)
  • Diameter: 1.02 ±0 .005mm
• Insulation:

  • Material: Foam PE
  • Nom. Thickness: 1.70mm
  • Diameter: 4.57 ±0.05mm
• Screening:

  • Material: Heat–sealed aluminum/polyester
  • Coverage: ≥125%
• Overall Shield:

  • Material: Tinned copper
  • Construction: 16/10/0.12Tmm
  • Coverage: ≥95%
• Jacket:

  • Material: PVC
  • Nom. Thickness: 0.85mm
  • Color: Black
  • Outer diameter: 6.9 ±0.10mm
• Electrical:

  • Rated Voltage: 300V
  • Rated Temperature: 75˚C
  • DCR (20°C): 6.52Ω/1000FT
  • Capacitance (20°C): 16.2pF/FT
  • SRL (20°C): 23dB min @ 5–850 MHz, 21dB min @ 851–3000 MHz, 18dB min @ 3000–4500 MHz
  • Impedance (20°C): 75 ±3Ω
  • Attenuation db/100ft (20°C): 0.28 dB @1 MHz, 0.77 dB @ 10 MHz, 1.53 dB @ 50 MHz, 1.98 dB @ 100 MHz, 2.73 dB @ 200 MHz, 3.9 dB @ 400 MHz, 5.24 dB @ 700 MHz, 6.35 dB @ 1000 MHz, 7.75 dB @ 1450 MHz, 9.47 dB @ 2000 MHz, 11.64 dB @ 3000 MHz
• Standards Compliance:

  • UL/cUL: CM/CMG
  • CSA: FT4
  • RoHS: 2011/65/EU
