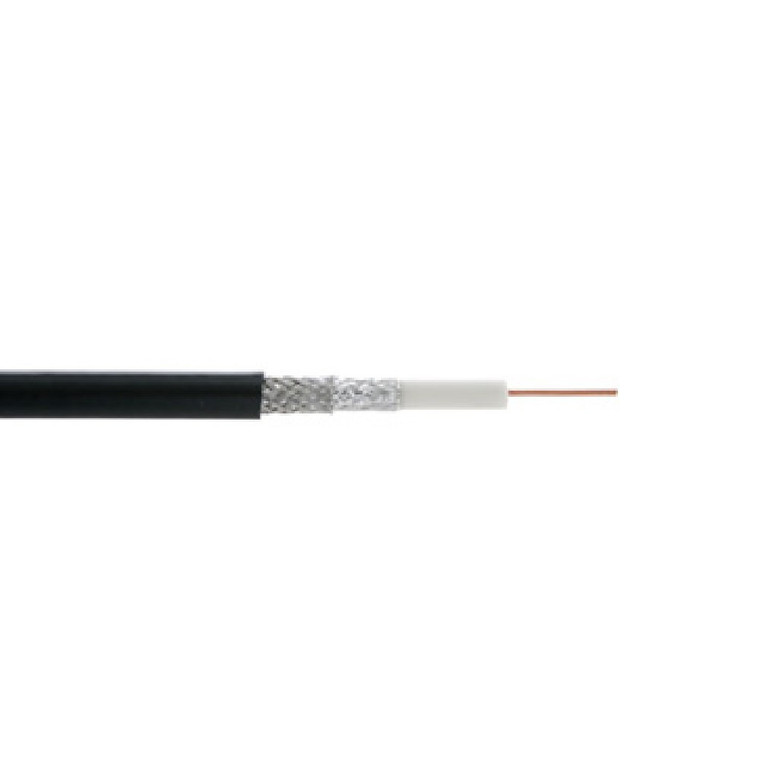

Kramer BC-1X-300M 1 Coax RG–6 Super High–Resolution Bulk Cable (985')

Kramer’s BC−1X is a super high−resolution RG−6 style coaxial cable perfect for long distance composite and HD−SDI runs that require precision performance with analog or digital video signals.

•  Quality Construction — 18AWG solid center conductor and dual shield design consisting of aluminum braid and dual aluminum Mylar foil. Rugged and flexible with low attenuation.
•  Universal Compatibility — Compatible with Kramer’s compression connectors as well as typical crimp systems.
•  Length — Available in reels of 100/300m (328/984ft).

Key Features

• Lengths — 328–984ft (100–300m)

Technical Specifications

• Conductors:

  • Material: Bare copper
  • Construction: 18AWG (1/18)
  • Diameter: 1.02 ±0.005mm
• Insulation:

  • Material: Skin foam
  • Nom. Thickness: 1.77mm
  • Diameter: 4.57 ±0.15mm
• Screening:
  • Material: Dual–foil/mylar
  • Coverage: ≥125%
• Overall Shield:

  • Material: Aluminum wire
  • Construction: 34AWG
  • Coverage: ≥61%
• Jacket:

  • Material: PVC
  • Nom. Thickness: 0.76mm
  • Color: Dark gray
  • Outer Diameter: 6.95 ±0.19mm
• Elecctrical:

  • Rated Voltage: 300V
  • Rated Temperature: 80˚C
  • DCR (20°C): 152Ω/1000m
  • Capacitance (20°C): 53.pF/m
  • SRL (20°C): –20dB
  • Impedance (20°C): 75 ±5Ω
  • Attenuation (20°C): 0.3 dB @1 MHz, 0.6 dB @ 5 MHz, 0.8 dB @ 10 MHz, 1 dB @ 20 MHz, 1.6 dB @ 50 MHz, 1.8 dB @ 71 MHz, 2.1 dB @ 100 MHz, 2.4dB @ 135 MHz, 2.8 dB @ 180 MHz, 2.9 dB @ 200 MHz, 3.4 dB @ 270 MHz, 4.5 dB @ 400 MHz, 5.8 dB @ 750 MHz, 6.8 dB @ 1000 MHz, 8.8 dB @ 1500 MHz, 12.9 dB @ 3000 MHz
  • Velocity of Propagation (NVP) (20°C): 82%
• Standards Compliance:

  • UL/cUL: CL2
  • CSA: FT4
  • RoHS: 2011/65/EU
•
