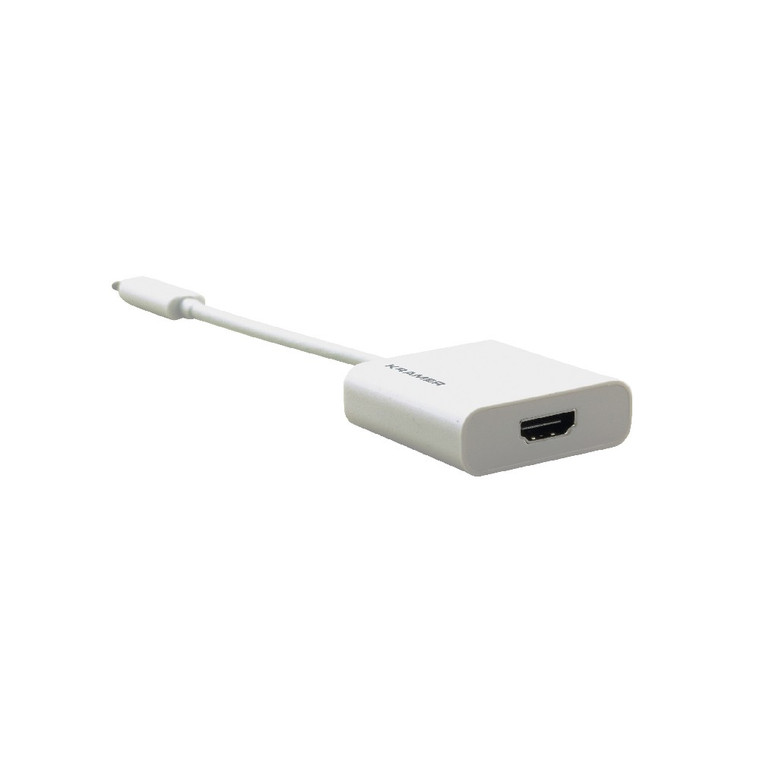

Kramer ADC-U31C/HF USB 3.1 Type–C to HDMI Adapter Cable

Kramer’s ADC−U31C/HF is a USB 3.1 Type−C to HDMI adapter cable that lets you output HDMI video and audio from a USB Type−C™ device to easily connect extra monitors to a laptop or desktop without having an extra graphic card. This short cable adapter is ideal for connecting your MacBook, Chromebook or laptop with USB Type−C to a HDMI monitor or projector supporting resolution up to 4K@60Hz.
Note: Video output for smartphones is supported only for smartphones that support DisplayPort Alt mode through USB−C.

•  Max. Resolution 4K@60Hz (4:4:4).
•  Supports HDCP 2.2 and HDCP 1.4.
•  Compatible with Windows & Mac.
•  Mirror or Extend a Computer Display Workspace.
•  Plug and Play Installation — No drivers required, bus powered.
•  RoHS Compliant.
•  Note — Your USB–C equipped device must support video (DP alt mode) to work with this adapter.

Key Features

• Outputs HDMI video and audio from a USB Type–C™ device

Technical Specifications

• Overall:

  • MAX. RESOLUTION: 4K@60Hz 4:4:4
  • WIDE SCREEN SUPPORTED: Yes
• Physical:

  • CONNECTOR A: USB Type–C connector — male (input)
  • CONNECTOR B: HDMI type A female connector (output)
  • SHEATH MATERIAL: PVC
  • OVERALL SHEATH DIAMETER: 3.8±0.2mm
  • OUTER SHEATH COLOR: White
  • PRODUCT LENGTH: 170±10mm
• Regulatory Standards Compliance: RoHS, CE, FCC
