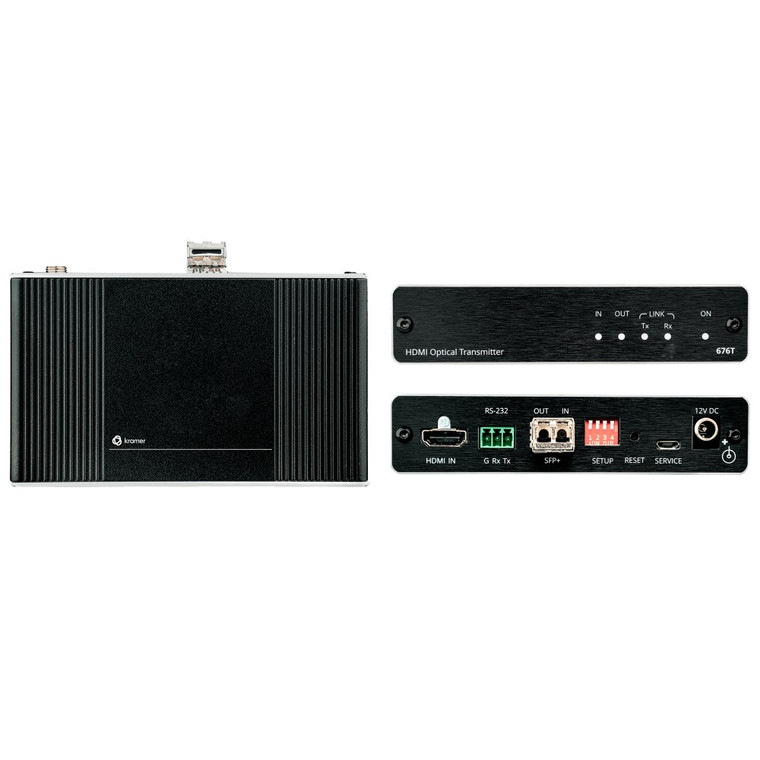

Kramer 676T 4K60 4:4:4 HDMI and RS–232 Transmitter Over Ultra–Reach MM/SM Fiber Optic

676T is a high−performance HDMI fiber transmitter for ultra−reach extension of 4K@60Hz (4:4:4) HDMI signals. 676T converts the HDMI and RS−232 input signal to an optical signal that is transmitted over a fiber optic cable to a compatible receiver that converts it back to HDMI and RS−232 signals. 676T includes a multi−mode SFP+ transceiver, but can be used with any Kramer certified SFP+ transceiver, such as a single−mode SFP+ transceiver.

•  High Performance Standard Fiber Extender — HDMI fiber transmitter for providing ultra–reach signals over either multi–mode or single–mode optical fiber infrastructures, using Kramer pluggable OSP SFP+ units (multi–mode SFP+ included). Near–zero latency video chroma sub–sampling conversion technology, is employed to auto–adapt above 10G HDMI signals to 10G optical link signal data–rate.
  Note: To ensure specified performance, support, and warranty of this product, use only Kramer's certified hi–performance OSP SFP+ pluggable optical units.
•  Multi–drop Signal Distribution — Use optical splitters to extend the input signals from a single transmitter to multiple receivers, for displaying the same content on multiple display devices using optical splitting only, with no need for AV distribution amplifiers.
•  HDMI Signal Extension — HDCP 2.2 compliant and supports up to 18G (6G per channel) data rate, LPCM 7.1, Dolby True HD, and DTS–HD as specified in HDMI 2.0.
•  Power Saving — With CEC ON/OFF function, shut down a display device automatically when not in use, and auto power it ON upon presentation start.
•  I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
•  Bidirectional RS–232 Extension — Serial interface data flows in both directions, to enable data transmission and control of devices.
•  Cost–Effective Maintenance — Status LED indicators for power, source, sink and fiber link connections detection facilitate easy local troubleshooting.
•  Easy Installation — DigiTOOLS® rack mountable fan–less enclosure enables side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.

Key Features

• Compact, plug & play HDMI optical transmitter
• Multi–mode or single–mode fiber
• Video resolution — Up to 4K@60 (4:4:4)
• Control extension
• Up to 33km ultra–reach extension

Technical Specifications

• Inputs:  On a female HDMI connector
• Outputs: Fiber Optic: On LC connector(s)
• Ports:

  • RS-232: On a 3–pin terminal block connector
  • USB: On a female micro USB connector for firmware upgrade
• Video:

  • Max Bandwidth: 18Gbps
  • Max Resolution: 4096x2160@60Hz 4K@60 (4:4:4)
  • Compliance: HDMI 2.0 and HDCP 2.2
• Extension Line:

  • Optical Fiber: Multi–mode (MM) or single–mode (SM)
  • Optical Module: Kramer 10Gbps SFP+ IEEE 802.3ae compliant modules (MM is included)
• Multi-mode Line:

  • Compliance: G.651.1 OFNR fiber
  • Max Reach over OM3 MM Fiber: 3km (1.8 miles)
• Single-mode Line:

  • Compliance: G.652D OFNR fiber
  • Max Reach over OS1 SM Fiber: 33km (20.5 miles)
• Standards Compliance:

  • Laser Safety Compliance: Class 1
  • SFP Regulatory Certifications : FDA CDRH 21 CFR 1040 and Laser Notice No. 50, UL and CUL EN60950–2:2007, RoHS6, EMC EN 55022 and EN 55024, IEC 62368–1 and IEC 60825–1 and — 2
• Extended RS-232: Baud Rate: 300 to 115200
• User Interface:

  • Indicators: Source detection, sink detection, optical link and power LEDs
  • Controls: Reset button
• Power:

  • Consumption: 480mA
  • Source: 12V DC, 2A
• Environmental Conditions:

  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: –40° to +70°C (–40° to 158°F)
  • Humidity: 10% to 90%, RHL non–condensing
• Regulatory Compliance (Standards Compliance):

  • Safety: CE, UL
  • Environmental: RoHs, WEEE
• Enclosure:

  • Size: Tool
  • Type: Aluminum
  • Cooling: Convection ventilation
• Product Dimensions: 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
• Product Weight: 0.2kg (0.5lbs) approx.
• Shipping Dimensions: 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
• Shipping Weight: 0.7kg (1.6lbs) approx.

What's Included

• MM SFP+ transceiver
• Power adapter
• Power cord
• Mounting bracket set
