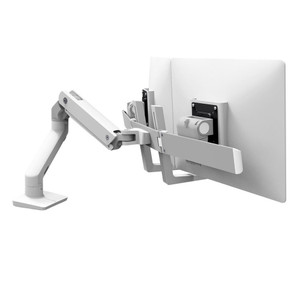

Ergotron HX Desk Monitor Arm (White)

Choose a monitor arm that’s as adaptable as you. With the HX Desk Monitor Arm, you can easily reposition large monitors weighing up to 42 lbs (19.1 kg) using patented Constant Force™ Technology. It enhances your workspace with a sleek design, and an optional dual or triple monitor bow kit ups your screen count and productivity. It’s BIFMA level® 2 certified based on the arm’s low environmental and social impact.

NOTE: To use this arm with the ultra-wide, curved Samsung® 49" Odyssey G9, add the HX Heavy-Duty Tilt Pivot accessory (98-540-216) or choose the HX Desk Arm with HD Pivot (45-647-224 or 45-647-216).

Key Features

• Comfortable fit Offers ergonomic monitor positioning using patented Constant Force™ Technology
• Rotation stop Avoid hitting cube walls with a rotation-stop on the base
• Saves space Places screen in the best view to tackle each to-do
• Sleek build Cables stay hidden under the arm and through the extension
• Sustainable choice BIFMA level® 2 certified for a low environmental and social impact
• Quality design Built for thousands of movements by passing 10,000-cycle test

Product Specifications

• Product Weight: 7.0 kg
• Shipping Weight: 8.5 kg
• Description: HX Desk Monitor Arm
• Includes arm, extension, monitor pivot, desk clamp, grommet mount, mounting hardware
• Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
• Portrait/landscape rotation with lockout
• Streamlined cable management routes cables under arm and within extension
• Desk clamp attaches to surface edge 0.4" to 2.6" (1 to 6.6 cm) thick
• Grommet mount attaches through surface holes
• § Weight Capacity: 20–42 lbs (9.1–19.1 kg). Note: Display depth > 6" (15 cm) may affect the arm’s weight capacity. For a curved monitor, consider the arc’s depth to determine compatibility. For a display weighing 28–42 lbs (12.7–19.1 kg) with a depth of 6"–12" (15–30 cm), the accessory HX Heavy-Duty Tilt Pivot (98-540-216) is required
• To use an HX arm with the ultra-wide, curved Samsung 49" Odyssey G9 Monitor, also order the accessory HX Heavy-Duty Tilt Pivot (98-540-216)
• * Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base
• ‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
• † Tilt Range: 70° backward, 5° forward
• This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
• Shipping Dimensions: 18.5" x 11.5" x 6.5" (47 x 29 x 16 cm)
