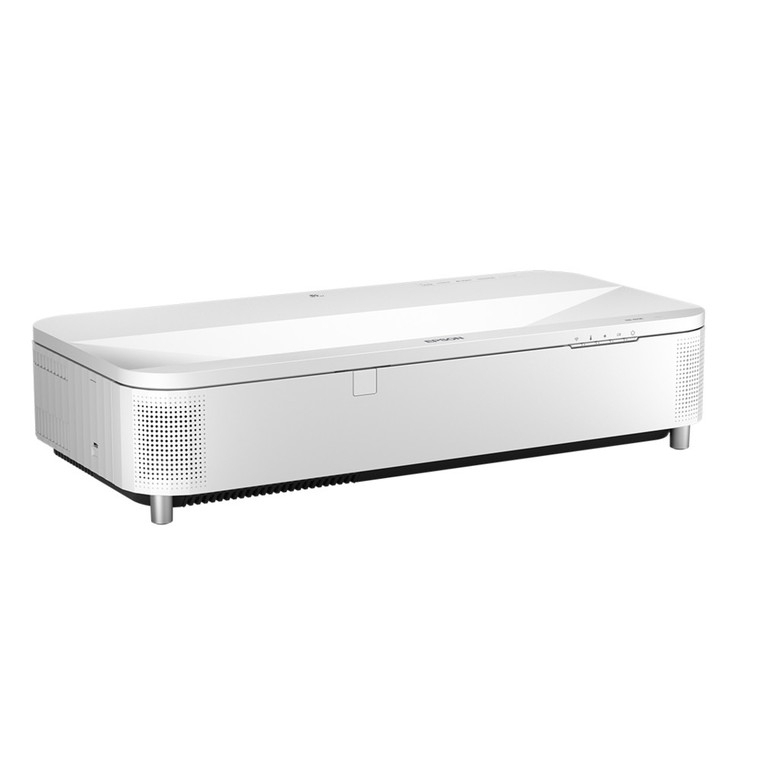

Epson EB-810E Extreme Short Throw 4K Enhancement Laser Projector

EPSON

Pricing available upon request

Warranty: 3yrs Parts & Labor Carry- In for Projector Main Unit
Current Stock:

Take classroom and meeting room displays beyond the limits of flat panels.

The EB-810E Extreme Short Throw 4K Enhancement1 Laser Projector is an innovative lamp-free laser display, offering a flexible solution for classrooms and hybrid workspaces. It delivers a bright, glare-free display up to 160" from just a few centimeters away from the wall, with built-in split-screen and multi-device support for casting.

It supports various display ratios for hybrid meetings, has a long-lasting laser light source, and offers versatile connectivity. With an optional wall mount, it can transform traditional whiteboards into vibrant displays, and installation is easy with the Epson Setting Assistant app. Elevate your display beyond ordinary flat panels with the Epson EB-810E.

  • 3LCD technology; 5,000 lumens of colour/white brightness
  • 1080p with 4K Enhancement1 for stunning image clarity
  • Up to 160-inch screen size; 4.5x larger than a 75-inch flat panel
  • Easy integration with native 16:9 aspect ratio, supports 16:10, 21:9, 16:6

EB-810E Extreme Short Throw 4K Enhancement Laser Projector

Laser display for meeting rooms and digital signage that goes beyond the limits of ordinary flat panels.

The EB-810E Extreme Short Throw 4K Enhancement1 Laser Projector can be placed just centimetres away from a wall to create bright 4KE images up to 160”. It projects content in stunning clarity and offers a low-cost, energy-efficient large display solution with a convenient and quick set up.

Stunning colour and impactful image quality with 3LCD technology

Virtually glare-free from anywhere in the room, unlike flat panels; 5,000 lumens of colour and white brightness.

Extreme short throw- large, up to 160" diagonal image

80" image from just 2.3cm* away from the wall or 100" from 9.8cm* away; at approximately 12.5kg, this lightweight projector can deliver an image up to 160" diagonal; 4.5 times larger than a 75" flat panel.

* from the wall to front of projector

EB-810E's extreme short throw lens allows discreet positioning close to the wall, enabling presenters free access without casting shadows. The projector also comes with versatile wired and wireless connectivity options, including Miracast™ screen mirroring, ensure effortless, multi-device support for content sharing.

Built-in flexible digital canvas for easy integration

16:9 native aspect ratio with additional support for ultra wide 16:6 and 21:9 for equitable conferencing experience in meeting rooms and collaborative hybrid workspaces, as well as captivating digital signage.

In addition to a standard 16:9 display, the EB-810E goes beyond the limits of ordinary flat panels by supporting an ultra wide 21:9 and 16:6 display to ensure an equitable hybrid meeting room experience where participants can easily see and be seen.

Technical Specifications
  • Projection Technology: RGB liquid crystal shutter projection system (3LCD)
  • Brightness:
    • White Light Output (Normal / Extended): 5,000lm / 3,500lm
    • Colour Light Output: 5,000lm
  • Connectivity:
    • Digital Input:
      • HDMI: 2 (HDCP 2.3)
      • HDBaseT: 1 (HDCP 2.3)
    • Control I/O: RS-232C: 1 (D-sub 9-pin)
    • USB Input: USB Type A: 2 (Port1 for for PC Free, Firmware update, Copy OSD Settings, ELPAP11; Port 2 for PC Free, Firmware update, Copy OSD Settings or 5V/2A Power Supply
      USB Type B: 1 (For Firmware update, Copy OSD Settings)
    • Network I/O:
      • Wired LAN: 1 (RJ45)
      • Wireless LAN: In-built and Optional (using USB-A Port 1)
    • Digital Video Output: HDMI: 1 (HDCP 2.3)
  • Contrast Ratio: Over 5,000,000:1
  • Quick Corner: Yes
  • Operating Temperature:
    • Low Altitude (0 - 2,286m/7,500ft): 0 - 40 °C <32 - 104°F>
    • High Altitude (Over 2,286m/7,500ft): 0 - 35 °C <32 - 95 °F>
    • 20% - 80% Humidity, No Condensation
  • Operating Altitude: Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)
  • Start-Up Period: Less than 6 seconds (Epson Logo); Warm-up Period: less than 30 sec
  • Quick Start-Up: Less than 12 seconds (Display)
  • Cool Down Period: Instant Off
  • Sound Output: 8 W x 8 W Stereo
  • Direct Power On/Off: Yes
  • Weight: Approx. 12.5 kg
  • Air Filter:
    • Type: Electrostatic Filter
    • Maintenance Cycle: 20,000 hours (Normal)
  • Fan Noise (Normal / Eco): 35dB / 26dB
  • Adjustment Functions:
    • Frame Interpolation: Yes
    • Image Adjustment: 4K Enhancement, Image Present Mode, Noise reduction
  • Screen Size (Projected Distance – Lens to Screen):
    • Zoom : Wide:
      • 80" to 160" [27.8cm to 57.8cm] @16:9
      • 66" to 130" [28.1cm to 57.4cm] @4:3
      • 74" to 148" [27.8cm to 57.8cm] @16:10
      • 76" to 151" [27.9cm to 57.5cm] @21:9
      • 75" to 148" [28.0cm to 57.4cm] @16:6
    • Zoom : Tele:
      • 60" to 118" [28.2cm to 57.5cm] @16:9
      • 49" to 96" [28.2cm to 57.2cm] @4:3
      • 55" to 109" [27.9cm to 57.4cm] @16:10
      • 57" to 112" [28.2cm to 57.6cm] @21:9
      • 56" to 110" [28.3cm to 57.6cm] @16:6
  • Wireless Specifications (Screen Mirroring, In-built and Optional wireless LAN):
    • Supported Speed for each Mode:
      • Infrastructure:
        • IEEE 802.11b (2.4GHz): 11 Mbps4
        • IEEE 802.11g (2.4GHz): 54 Mbps4
        • IEEE 802.11n (2.4GHz): 72.2 Mbps4
        • IEEE 802.11a (5GHz): 54 Mbps4
        • IEEE 802.11n (5GHz): 150.0 Mbps4
        • IEEE 802.11ac (5GHz): 325Mbps4
      • Access Point(Wi-Fi Direct):
        • IEEE 802.11g (2.4GHz): 54 Mbps4
        • IEEE 802.11n (2.4GHz): 72.2 Mbps4
        • IEEE 802.11a (5GHz): 54 Mbps4
        • IEEE 802.11n (5GHz): 150.0 Mbps4
        • IEEE 802.11ac (5GHz): 325Mbps4
    • Supported Mode: Infrastructure, Access Point(Wi-Fi Direct)
    • Supported Security Type:
      • Infrastructure: OPEN (WPA2/WPA3-PSK/ WPA2/WPA3-EAP)
      • Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
      • Access Point (Wi-Fi Direct) : WPA2-PSK (AES)
  • Main Parts Specification:
    • LCD:
      • Size: 0.62" (C2 Fine)
      • Resolution: 1080P (4KE)
      • Aspect Ratio: 16:9
    • Projection Lens:
      • Type: Focus (Manual)
      • F-Number: 1.8
      • Focal Length: 2.3mm
      • Zoom Ratio: 1 - 1.35 (Digital zoom)
      • Throw Ratio: 0.16 – 0.22 (Wide - Tele)
  • Power:
    • Power Consumption: LD On (Normal / Quiet / Extended): 380W / 286W
    • Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz
  • Lightsource:
    • Type: Laser Diode
    • Light Source Life (Normal/ Extended): 20,000 / 30,000 hrs
ANSI (Lumens):
5000
Resolution:
Full HD (1920 x 1080)
Product Type:
Projector
