Warranty: 1 Year
Boundless collaboration for hybrid workspaces.

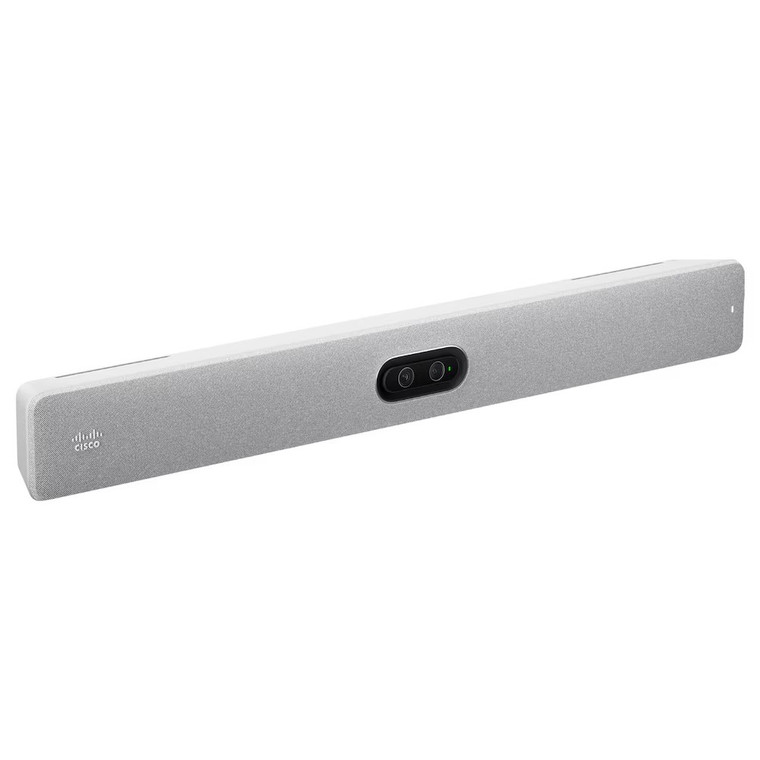

Room Bar is an all-in-one video conferencing bar that does it all—from native, laptop-free video collaboration to seamless BYOD experiences via USB passthrough. Transform your meetings with a room device that integrates a 4K camera, a powerful codec, built-in microphones, stereo speakers and an array of connectivity options — supporting the displays of your choice.
Transform meeting rooms with immersive experiences.
Enjoy more productive meetings and incredible video conferencing experiences on any meeting platform with a smart video bar which integrated with single and dual displays.
Built-in microphone array
Block out distractions with the noise-cancelling microphone array and AI-based noise removal so everyone is heard loud and clear.
High-performing stereo loudspeakers
Benefit from spatial audio powered by dual stereo speakers just as if everyone was in the same room.
External microphone extension
Connect the Room Bar with an external microphone so even the far-end of the table comes across crisp and clear in extended workspaces.
Join any meeting, anytime.
With the Room Bar, you can experience exceptional video conferencing and content sharing on the meeting platform of your choice.
Welcome to the intelligent workplace.The Cisco Room Bar is a smart video bar that automatically wakes up as you enter the room, and you can join your meeting in seconds with a tap or a simple voice command. Use AI-powered face recognition to identify meeting participants and ultrasound technology to provide real-time metrics for workspace optimization and in-office wellbeing.
Key Features
- Exceptional video meetings
- Stunning presentations
- Workspace intelligence
- Simplified management and deployment
Technical Specifications
Camera overview
- 12MP camera
- 30 frames per second
- 1/2.3’’ CMOS
- 5x digital zoom
- f/2.5 aperture
- 120° horizontal field of view
- 95° vertical field of view
- Auto framing (face detect)
- Speaker tracking
- Frames intelligent people framing
- Auto brightness and white balance
- Fixed focus lens
- Automatic image rotation when mounted upside down
Video features
- Main video resolution up to 1920 x 1080 at 30 fps
- Two HDMI outputs supporting formats up to 3840 x 2160 at 60 fps
- Live video resolutions (encode and decode) up to 1920 x 1080 at 30 fps and 60 fps
- One HDMI input supports up to maximum 3840 x 2160 at 30 fps, including 1920 x 1080 at 60 fps
- One USB-C input supports up to maximum 3840 x 2160 at 30 fps, including 1920 x 1080 at 60 fps
- Support for H.263, H.264 video standard
- Supporting available Webex video stream layouts and meeting features, including people focus, grid, prominent, stack and overlay.
- Seamless, single-tap meeting to join to Microsoft Teams (via CVI and WebRTC), Zoom (via Zoom Conference Room Connector) and Google (via WeRTC) meetings" > "When configured for RoomOS, the solution supports seamless meeting join to Microsoft Teams (via CVI and WebRTC), Zoom (via SIP) and Google (via WeRTC) meetings
- Native support for Microsoft Teams Rooms (MTR) and the option to join native Webex meetings in MTR mode (coming soon)
Audio features
- Stereo loudspeaker system with 2 high-quality full range drivers, supporting directional audio
- 4-element beamforming microphone array
- 1 extra microphone input for voice pickup extension
- Additional microphone array for speaker tracking
- Acoustic Echo Cancellation (AEC)
- Active Lip Synchronization
- AI-Powered, Adaptive Noise Removal
- Automatic Gain Control (AGC)
- Beamforming Microphones
- De-Reverberation
- Full Duplex
- Full-Band Audio
- Self-Hear
- Spatial Audio
- Ultrasound Technology
Presentations
- Wireless content sharing via the Webex app (up to 3840 x 2160 at 7.5 fps)
- Wireless content sharing via Cisco Intelligent Proximity client (up to 3840 x 2160 at 3 fps)
- Wireless content sharing via Miracast (up to 1920 x 1080 at 30 fps) - Not available on Non-radio version
- Apple AirPlay wireless sharing (up to 1920 x 1080 at 60 fps)
- Supports dual screens for video and content
- Supports dual content sources for local meetings
- View whiteboard content and annotations shared from a Cisco Board, Cisco Desk Pro, or the Webex app
- 4K wireless content sharing (up to 3840 x 2160 at 15 fps)
- 4K wired (USB-C and HDMI) passthrough content sharing
Room intelligence
- Control with Cisco Room Navigator touch panel (wall-mount or table-stand) for access to conference controls, room booking, room controls and workplace applications.
- Metrics: Counts people in the room via smart presence detection, enabling analytics for better resource planning
- Automatic screen/display integration through HDMI CEC
- Supports Wi-Fi 5 and Bluetooth® **
- Control peripherals such as lights and blinds through the Cisco Room Navigator
- Environmental sensors when connected to the touch device to measure humidity, temperature, noise levels and air quality
- System “wakes up” when someone walks into the room, and recognizes them through their mobile device
- Webex Assistant enables conference controls via voice commands and other touchless workflows
- Customizations via macros for digital signage and other workspace applications
- Simplified meeting-join experience with One Button to Push (OBTP) or via voice commands using Webex Assistant
Security features
- Secure management using HTTPS and SSH protocols
- End-to-end encryption for calls and meetings on Webex
- Standards-based media encryption on all back-ends (Secure Real-time Transport Protocol [SRTP], using AES-128-GCM or AES-256-GCM)
- Password protection to access administration available on Room Navigator controller
- Network settings protection
- Privacy cover
- Meeting Room Size:
- Medium
- Meeting Room Size:
- Large
- Meeting Room Size:
- Ultra HD - 4K
- Field of View (FOV):
- Up to 120°
- Product Type:
- Video Conferencing
