Warranty: 1 Year

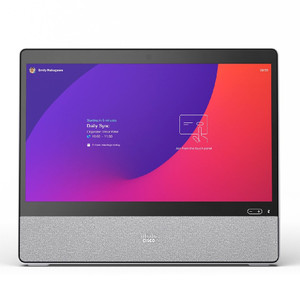

Cisco Desk Pro
The Desk Pro is an all-in-one premium collaboration and productivity device featuring a 27-inch 4K display, 71-degree HD camera, superior sound system, and advanced noise-canceling microphone array.
Video conferencing monitor
The Desk pro is an ideal work and collaboration station for executives, knowledge workers, and productivity champions. Enjoy all-in-one HD video and voice that provides an in-meetings experience that rivals in-person collaboration.
Collaboration devices for co-working spaces
The Desk Pro is an all-in-one collaboration device for open offices and jump spaces. It functions as a personal or shared device that combines an incredible 4K display, noise-canceling microphone array and premium speakers and camera. Advanced AI and analytics provide the insights you need to support workplace transformation.
Remote care device
For experts in the field where in-person meetings are not always an option, the Desk Pro provides premium-quality capabilities so you always appear professional.
Your instant office
The Desk Pro brings intelligent collaboration to the desk. Collaborate, co-create, and annotate on an interactive, touch-redirect, 4K display.
Meet on any platform
Join your upcoming Webex, Microsoft Teams, Google Meet, and Zoom meetings at the push of a button.
Unlock productivity
Advanced AI capabilities like noise removal and virtual backgrounds keep you productive and looking your best no matter your surroundings.
Hear the difference
Three directional speakers and a subwoofer deliver exceptional sound quality.
Improve the way you work.
The Desk Pro transforms the way you work, collaborate, and co-create from your desk or in a shared space. Featuring a 4K, 27-inch touchscreen, 71-degree field-of-view 12 MP camera, 3.1 sound system, and advanced noise-canceling mic array, the Desk Pro provides an exceptional collaboration experience from any desk.
Powered by RoomOS.
Cisco RoomOS is the only operating system purpose-built for collaboration, delivering an intuitive user experience. Beyond supporting the native Webex and Microsoft Teams Rooms experience and advanced meeting interoperability, the platform is secure by design and continually developed to make the device experience even better over time.
Key Features
- 4K Display
- 27" Touch Screen
- 71° Field of View
- 12 MP camera
Technical Specifications
|
Software compatibility |
● Cisco Collaboration Endpoint Software Version 9.12 (CE9.12) or later, or Webex RoomOS
|
|
Sensors (experimental) |
● ALS (Ambient Light Sensor) for automatic brightness adjustment and Control Hub analytics reporting
● 1D Time-of-Flight (LiDAR) for accurate presence detection. Range < 80 centimeters distance and 25 degrees angle ● Temperature (experimental) for Control Hub analytics reporting. Resolution 0.1°C. Accuracy ±1°C ● Humidity (experimental) Control Hub analytics reporting. Resolution 1%. Accuracy ±10% |
|
Multipoint support |
● 5-way embedded SIP/H.323 conferencing capability with MultiSite option
|
|
MultiSite features (embedded multipoint)* (optional upgrade) |
● Adaptive SIP/H.323* MultiSite:
● 3-way, resolution up to 1080 at 30 fps plus content up to 4K at 15 fps ● 4-way, resolution up to 720 at 30 fps plus content up to 4K at 15 fps ● 5-way, resolution up to 720 at 30 fps plus content up to 4K at 10 fps ● Full individual audio and video transcoding ● H.323*, SIP, and Audio only in the same conference ● Best impression (automatic continuous presence layouts) ● Encryption and dual stream from any site |
|
Default components in Cisco Desk Pro |
● Desk Stand
● Stylus with two spare tips ● Network cable 3m/118 in ● USB-C cable (see USB-C BYOD section for details), 1.8 m/70.8 in ● HDMI 2.0 presentation cable 1.5 m/59 in ● Power supply Cisco Desk Pro |
|
Optional hardware components |
● VESA adapter and wall mount kit
● Replaceable metal speaker grille |
|
Display |
● 27 inch LCD monitor
● 4k resolution (3840x2160) (16:9) ● High-contrast IPS LED panel ● Contrast ratio: 1000:1 (typical) ● Viewing angle: +/- 89° (typical) ● Brightness 300 cd/m2 ● Color depth 1.07B colors ● Color gamut 72% NTSC (100% sRGB) |
|
User interface |
● Projected capacitive touch
● Optically bonded cover glass ● Multi-touch |
|
Supported PC resolutions |
● 1080p60, 1440p60, 2160p30 (4K) and 2160p60 (4K)
|
|
Camera |
● 4k Ultra HD camera
● 71° horizontal field of view, 59° vertical field of view ● f/2.0 aperture ● 12 MP image sensor, supports up to 30 fps ● 1/2.8” CMOS, Dual Pixel Technology ● Automatic tilt adjustment ● Automatic focus, brightness and white balance ● Focus distance 20 cm to infinity ● Privacy shutter with LED light |
|
Video standards |
● H.264 AVC, H.263 compatibility with TANDBERG MXP endpoints
|
|
Video inputs |
● USB-C DisplayPort Alternate Mode up to 3840 x 2160p60 (4kp60)
● HDMI 2.0 type A input supports formats up to 3840 x 2160p60 (4kp60) |
|
Video outputs |
● HDMI 2.0 type A output supports formats up to 3840 x 2160p60 (4kp60)*
|
|
Encode and decode |
● Video Stream: 1920x1080 at 30fps
● Content stream: 3840x2160 at 15fps ● 3840x2160 at 15 fps content decode from Webex |
|
Audio standards |
● G.711, G.722, G.722.1, G.729, AAC-LD, and Opus
|
|
Audio features |
● High-quality 20-kHz audio
● Automatic gain control ● Automatic noise reduction ● Active lip synchronization ● Keyclick suppression |
|
Audio inputs |
● Internal 8-element microphone array for speech
● USB ● Bluetooth® |
|
Audio outputs (external) |
● 1 analog headphone output (stereo minijack)
● USB ● Bluetooth® headset |
|
Loudspeaker (integrated) |
● High-quality speakers with left, center and right channels enabling directional audio, plus dual woofers in balanced configuration
● Frequency response 60 Hz to 20 kHz ● Amplifier power 4 x 14W |
|
USB-C BYOD |
● Ability to provide the following over one USB-C cable to a connected
computer ● Extension of display (3840x2160 @60fps) (Computer must support Alt-mode Display Port) ● Touch forwarding capabilities on supported operating systems ● Use Desk Pro camera, microphone and speakers with any SW client ● Laptop charging (60W maximum) |
|
Power |
● Rated: 200W maximum
● Standby power consumption: 15W
|
|
Other USB 2.0 ports |
● Three standard type A ports enable headsets and handset use
● One Micro-B USB port intended for service only |
|
Audio standards |
● Three standard type A ports enable headsets and handset use
● One Micro-B USB port intended for service only |
|
Sensors (experimental) |
● ALS (Ambient Light Sensor) for automatic brightness adjustment and Control Hub analytics reporting
● 1D Time-of-Flight (LiDAR) for accurate presence detection. Range < 80 centimeters distance and 25 degrees angle ● Temperature (experimental) for Control Hub analytics reporting. Resolution 0.1°C. Accuracy ±1°C ● Humidity (experimental) Control Hub analytics reporting. Resolution 1%. Accuracy ±10% |
|
Operating temperature and humidity |
● 0°C to 35°C (32°F to 104°F) ambient temperature
● 20% to 90% Relative Humidity (RH)
|
|
Storage and transport temperature |
● -20°C to 60°C (-4°F to 140°F) at RH 10% to 90% (noncondensing)
|
|
Locking mechanism |
● Kensington security lock
|
|
Dimensions |
● Width: 63 cm (24.8 in.)
● Height: 51 cm (20.1 in.)
● Depth: 7.5 cm (3.0 in.) without desk stand. 7.1 in. (18 cm) with desk
stand attached |
|
Ergonomic design |
● Tiltable screen
● Flippable cable cover and integrated cable management in Desk Stand |
|
Physical buttons |
● Power button
|
|
Touch buttons |
● Volume up and down LED indicator
● Microphone mute LED indicator |
|
Visual indicator |
● Camera On LED indicator (camera activation)
|
|
Network |
● Internal 2-port Cisco Ethernet switch allows for a direct connection to a
10/100/1000BASE-T Ethernet network (IEEE802.3i/802.3u/802.3ab) through an RJ-45 interface with single LAN connectivity for both the phone and a co-located PC ● Wi-Fi 802.11a/b/g/n/ac 2.4 GHz and 5 GHz |
|
Bandwidth requirements |
● Up to 6 Mbps point-to-point
|
|
Call control |
● Cisco Unified Communications Manager (Unified CM)
● Native registration with Unified CM ● Requires Unified CM Version 10.5* or later with latest device pack ● Cisco Expressway ● Native registration with Expressway ● Webex Service ● Third-party H.323 gatekeepers and standards based SIP proxies |
|
Peripherals supported |
● USB headset
● Bluetooth® headset (wide band) ● Analog headphone output (stereo minijack) |
|
Wireless sharing |
● Webex App
● Webex Meetings ● Cisco Proximity App |
|
Embedded encryption |
● Support Webex Encryption, end to end
● H.323* and SIP point-to-point ● Standards-based: H.235 v3 and Advanced Encryption Standard (AES) ● Automatic key generation and exchange |
|
Approvals and compliance |
● Directive 2014/53/EU (Radio Equipment Directive) for the radio versions
● Directive 2014/30/EU (EMC Directive) for the non-radio versions ● Directive 2014/35/EU (Low-Voltage Directive) for the non-radio versions ● Directive 2011/65/EU (RoHS) ● Directive 2002/96/EU (WEEE) ● NRTL approved (product safety) ● FCC CFR 47 Part 15B (EMC) – Class A ● FCC CFR 47 Part 15C (RF) ● FCC CFR 47 Part 15E (RF) ● FCC Listed (radio equipment) |
