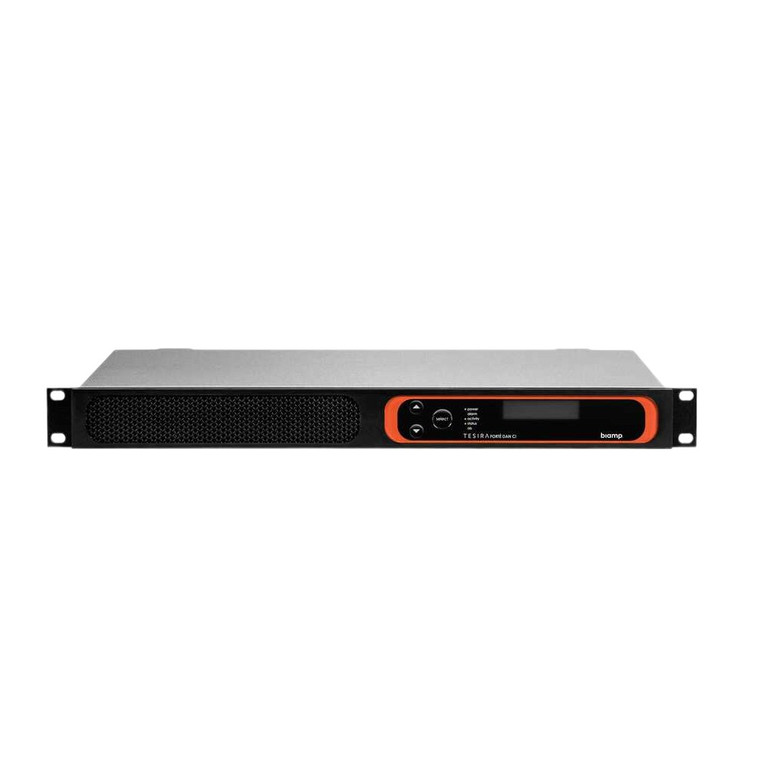

Biamp TesiraFORTE DAN CI

The TesiraFORTÉ DAN CI is a purpose-built digital signal processor designed for conferencing environments that require Dante networking, AES67 interoperability, and advanced acoustic echo cancellation. With 32×32 channels of Dante, the processor integrates seamlessly into large-scale audio-over-IP systems, offering robust routing and low-latency audio transport across enterprise, education, and government installations.

Equipped with 12 microphone/line inputs featuring AEC, the TesiraFORTÉ DAN CI delivers clean, echo-free speech for remote participants, ensuring clarity even in acoustically challenging rooms. The 8 mic/line outputs provide flexible distribution to loudspeakers, zone amplifiers, recording devices, and auxiliary systems.

Configuration and control are managed through Tesira software, offering comprehensive tools for routing, mixing, EQ, filtering, dynamics, and delay processing. The unit provides Gigabit Ethernet, RS-232, and GPIO connectivity for integration with automation platforms and third-party control systems. An onboard two-line OLED display with capacitive-touch navigation allows installers to quickly review system status and make critical adjustments onsite.

Engineered for reliability and ease of deployment, the TesiraFORTÉ DAN CI includes an internal universal power supply and meets CE, UL, and RoHS compliance standards. The processor is fully TAA compliant, making it appropriate for U.S. federal and government projects. As a Biamp Workplace Ready device, it supports cloud-based monitoring, remote commands, and lifecycle management through the Biamp Workplace platform.

Backed by a comprehensive 5-year warranty, the TesiraFORTÉ DAN CI provides dependable, high-performance conferencing audio for mission-critical environments.

Key Features

• Expand your Dante-based systems — the TesiraFORTÉ DAN CI supports 32×32 channels of Dante, enabling robust, scalable networked audio routing.
• Ensure interoperability — AES67 support allows seamless integration into mixed audio-over-IP ecosystems.
• Improve remote participant clarity — 12 AEC-enabled mic/line inputs remove echo and reflections for natural, intelligible conferencing audio.
• Route audio with flexibility — 8 mic/line outputs support loudspeakers, overflow zones, assistive listening systems, and recording feeds.
• Integrate seamlessly — Gigabit Ethernet, RS-232, and GPIO provide reliable connectivity to control processors and automation systems.
• Simplify commissioning — the two-line OLED display with capacitive-touch navigation delivers quick system visibility and easy access to essential settings.
• Deploy confidently — the internal universal power supply ensures compatibility with global installations.
• Invest with confidence — the TesiraFORTÉ DAN CI is TAA compliant, Biamp Workplace Ready, and backed by a comprehensive 5-year warranty.

Technical Specifications

• General

  • Height: 1.75 inches (44 mm)
  • Width: 19.0 inches (483 mm)
  • Depth: 10.5 inches (267 mm)
  • Weight: 8 lbs (3.63 kg)
• Environmental

  • Ambient Operating Temperature Range: 32-104° F (0–40° C)
  • Humidity: 0–98%, non-condensing
  • Altitude: 0-6,600 feet (0–2000 Meters) MSL
• Power

  • Power Consumption: 100-240VAC 50/60Hz: < 35W
  • Phantom Power: +48VDC (7mA/input)
• Audio

  • Audio: Fixed I/O DSP with 32 bi-directional channels of Dante™ digital audio, 12 analog inputs with Acoustic Echo Cancellation (AEC), and 8 analog outputs. It also includes up to 8 channels of configurable USB audio.
  • Input Type: USB: Bit Depth: 16- or 24-bit Number of Channels: up to 8 Sample Rate: 48kHz
  • Impedance (balanced): 8kΩ
  • Input Gain Range (6dB steps): 0-66dB
  • Maximum Input: +24dBu
  • Output Impedance (balanced): 207Ω
  • Maximum Output (selectable): +24dBu, +18dBu, +12dBu, +6dBu, 0dBu, -31dBu
  • Frequency Response: 20Hz to 20kHz, +4dBu output: +0.25 dB/-0.5 dB
  • EIN (no weighting, 22Hz to 22kHz): < -125dBu
  • Dynamic Range (in presence of signal): 22Hz to 22kHz, 0dB gain: > 108dB
  • Crosstalk channel to channel, 1 kHz: 0dB gain, +4dBu input: < -85dB 54dB gain, -50dBu input: < -75dB
  • Sampling Rate 48kHz
  • A/D Converters A/D - D/A Converters: 24-bit
• Certified Solutions: TAA Compliant
• Compliance:

  • Certifications FCC Part 15B (USA)
  • CE marked (Europe)
  • UL und C-UL listed (USA and Canada)
  • RCM (Australia)
  • RoHS Directive (Europe)
