BenQ LU930 5000lms WUXGA Corporate Laser Projector

Dual Color Wheels Produce 90% Rec.709 Color Coverage for Optimal Color Performance

LU930’s powerful BlueCore laser projection utilizes a dual color wheel system to produce unparalleled color performance that achieves a 90% Rec.709 color coverage. By increasing color ratios and the purity of RGBY color, LU930 dramatically enhances color saturation to ensure superior presentation quality.

Advanced Infographic Mode for Supreme Presentation Quality

BenQ Infographic Mode perfectly fits the current corporate trend of mastering infographic-heavy presentations that all modern enterprises are striving for. Infographic Mode is great for showcasing the text and graphics of infographic in detail due to LU930’s high brightness and better color gradation through the 90% Rec.709 color coverage, ensuring more saturated and lively color performance than presentation mode. Additionally, Vivid Mode is designed for supreme color performance during video or image presentation.

High Brightness and LumiExpertTM Ambient Light Detector for Maximum Eye Comfort

LU930's 5000lm high brightness allows presenters and participants to deliver presentation in comfortably lit medium-sized conference rooms (20-40 people). BenQ corporate projector’s new LumiExpertTM technology can automatically detect the ambient light conditions of a meeting room and adjust the projector’s brightness to maximize clarity and comfort. Whether presenting in the dark boardroom or a brightly-office, LumiExpertTM makes sure the BenQ Corporate projectors delivers peak performance.

Laser-Powered Ultra-High Contrast

LU930 Laser Projector creates strikingly clear images with stratospherically high native contrast ratio of 3,000,000:1 for true deep blacks, vividly rich colors, and fine subtle details. LU930 also features spontaneous response, requiring no wait to turn on or resume from blanking in true black for flexible performance capability.

20,000 Hour Long-Lasting Performance

BenQ BlueCore laser projectors deliver 20,000 hours of superior image quality and performance. The laser light source resists color decay over time, making BenQ laser projectors ideal for multiple blending projections without concern for adjacent projectors generating different levels of brightness after a period of operation.

DLP Technology for Lasting Vibrant Color

BenQ BlueCore laser projectors are based on the absolute reliability of the 1-chip DLP design. The highly durable DLP chip can last over 100,000 hours without degradation, ensuring true-to-life colors and pristinely legible text over countless uses.

BenQ LU930 Laser Projector is designed with sealed laser modules and enclosed light engines to protect the DMD chip, color wheel sensor, laser bank, and other optical components. The design has passed the dust chamber test standard JIS Class IP5X.

Versatile Wireless Presentation Solutions

BenQ offers a complete line of Full HD wireless presentation solutions* to fulfill the diverse needs of meeting room applications, ranging from the premium level InstaShowTM wireless presentation system to the easy-to-use QCast Mirror Wifi dongle.

One Button to Start Full HD Wireless Presentations

BenQ InstaShowTM is a unique zero software solution that allows multiple presenters to lead from any device. The plug and play device requires no driver installation and is compatible with any OS or hardware platform, making it easy for presenters to wirelessly take turns delivering seamless presentations for improved meeting efficiency.

*Compatibility requirements: USB/HDMI ports on source laptop and HDMI input on display device



Wireless Multimedia Presentation from Smart Devices

To satisfy corporate employees’ growing BYOD needs, BenQ offers Qcast Mirror Wi-Fi dongle to let meeting participants wirelessly project Full HD multimedia content, including videos, documents, and live camera (video) sessions from any mobile device. BenQ wireless solutions encourage full participant engagement, collaborative teamwork, and inspirational discussions for highly effective meetings.

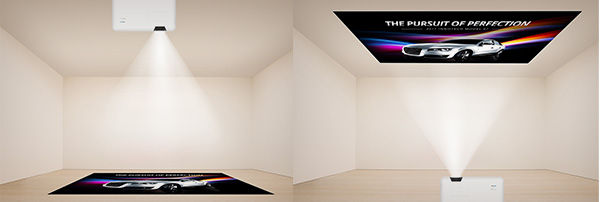

360° Rotation Projection

BenQ's LU930 can be tilted vertically at any angle, allowing projection onto ceilings, walls, floors, or angled signage to fulfill any projection demand.

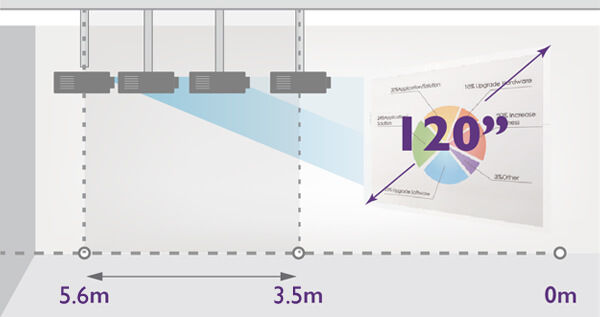

The 1.6x Zoom for Efficient Upgrades

With 1.6x Big Zoom, corporations can easily and economically replace outdated projectors by making use of existing ceiling mounts to project large-scale images in restricted spaces. The 1.6x zoom allows LU930 to be mounted anywhere from 3.5 to 5.6 meters from the screen and project images of 120", which is the typical image size for corporate meeting rooms, avoiding costly renovation or installation downtime.

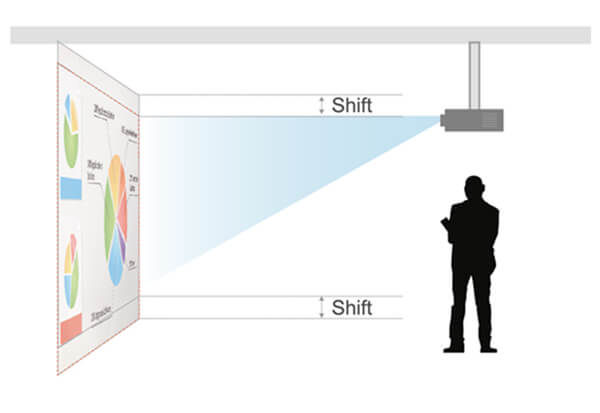

Horizontal /Vertical Lens Shift

The convenience of the horizontal/ vertical lens shift systems deliver perfectly proportioned images despite installation or placement challenges in any venue.

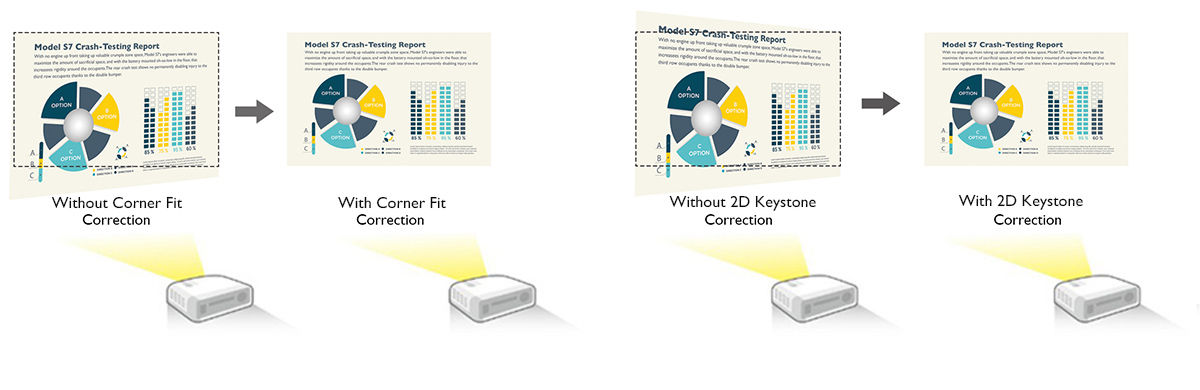

Advanced Image Calibration for Ideal Projection Alignment

LU930 is equipped with a two-dimensional keystone correction range of ±30° on both horizontal and vertical axes to counteract the trapezoid effect, a common phenomenon when the projector must be installed off-center. Installers can use Corner Fit control to adjust each corner respectively, for perfectly aligned image geometry.

Highly Integrated Network Control and Management System Compatibility



Comprehensive Control System Compatibility

LU930 is widely compatible with leading projector control systems including Extron, Crestron and PJ-Link, which fulfills network control via LAN, making it simple to integrate into corporate network infrastructures. When there is no LAN infrastructure, LU930 also supports RS-232 for reliable long-distance Installations up to 15 meters.







Centralized Control with BenQ’s MDA Software

The BenQ Multiple Display Administrator (MDA) software provides powerful centralized multiple-projector management, including automated opening and closing procedures for public spaces, remotely controlled power on and off, and scheduling for institutions and corporations.

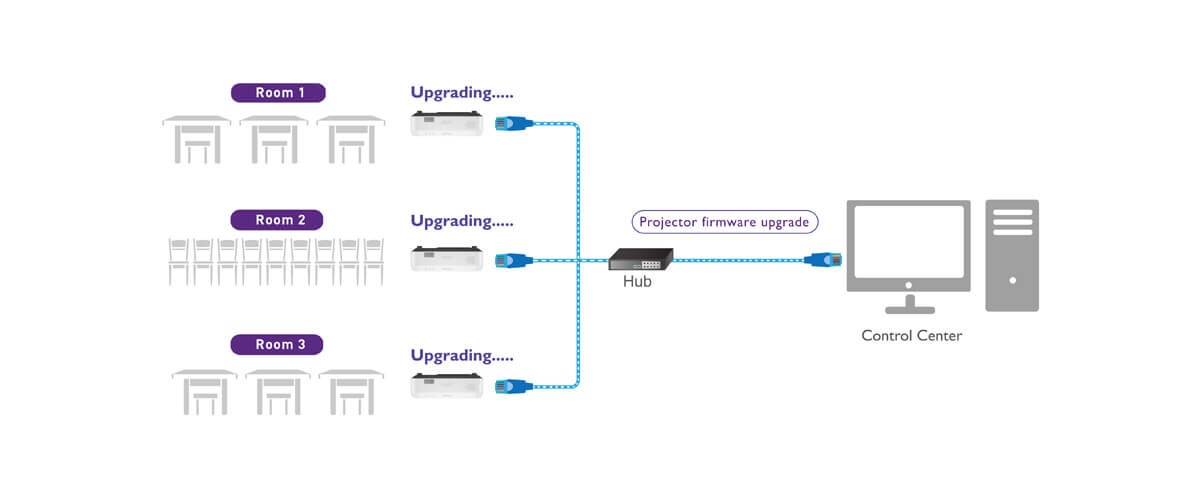

Centralized Upgrade Tool for Multiple Projector Maintenance

Administrators can centrally upgrade firmware on multiple BenQ projectors that are on the same local network via LAN (up to 253 projectors,) deploying the latest updates to all devices at once. This new application can upgrade firmware with a friendlier interface. *For more information about the tool, please contact BenQ service.

User Advantage



Laser Light Creates Value Over Time

The laser light source of BenQ BlueCore laser is guaranteed for 20,000 hours of maintenance-free operation, saving costs for lamp replacement and maintenance. Based on the average brightness cut off of typical long-life lamps, BlueCores’s value exceeds that of 10 lamp replacements over the life of the projector.





Multiple lighting modes to maximize energy use

LU930 comes with multiple lighting modes to optimize the projected image in a variety of ambient lighting situations. The feature guarantees the ideal brightness level to enhance the overall visual experience in any environment, while optimizing energy consumption and extending the projector’s lifespan.



Instant On/Off and Signal Power On

BlueCore laser projector powers up in half the time of a lamp-based projector, reducing wait time and power consumption. The signal power on feature turns your projector on automatically once input signal from VGA or HDMI is detected, further enhancing the convenience of using BenQ’s BlueCore laser projectors.

Technical Specifications

Display

• Brightness (ANSI lumens) 5000
• Native Resolution WUXGA (1920x1200)
• Native Aspect Ratio 16:10
• Contrast Ratio (FOFO) 3000000:1
• Display Color 30 Bits (1,07 billion colors)
• Light Source Laser
• Light Source Life 20000 hrs

Optical

• Throw Ratio 1.36 ~ 2.18
• Zoom Ratio 1.6x
• Lens F/# = 1.81 ~ 2.1,f = 14.3 ~ 22.9 mm
• Projection Offset (Full-Height) 0%
• Keystone Adjustment 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees
• Lens Shift Vertical ± 60%
• Lens Shift Horizontal ± 23%


• Rec. 709 Coverage 92%
• Picture Modes 3D, Bright, Infographic, Presentation, sRGB, User 1, User 2, Video

Compatibility

• Input Lag 2 frame (33.34ms) 60Hz
• Resolution Support VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
• Horizontal Frequency 15K~102KHz
• Vertical Scan Rate 23~120Hz

I/O Interface

• PC in (D-sub 15pin) (x1), PC in-1
• Monitor out (D-sub 15pin) (x1)
• Composite Video in (RCA) (x1)
• Component Video in (3RCA) (x1)
• HDMI in (x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4)
• LAN (RJ45) (x1)
• USB Type A (x1), USB Type A-1 (2.0/Power Supply1.5A/Service)
• RS232 in (DB-9pin) (x1)
• DC 12V Trigger (3.5mm Jack) (x1)

Audio

• Speaker (x2), 10W
• Audio in (3.5mm Mini Jack) (x1), 1
• Audio out (3.5mm Mini Jack) (x1), 1

Environment

• Operating Temperature 0~40℃
• Power Supply AC 100 to 240 V, 50/60 Hz
• Typical Power Consumption (110V) 415
• Stand-by Power Consumption <0.5W
• Network Stand-by Power Consumption <2W

Accessories

• Remote Control w/ Battery RCE016
• Power Cord (by region) x1 (1.8M)
• HDMI cable (Standard), Yes, 1.8m
• 3D Glasses (Optional), DGD5
• Quick Start Guide 1 (21L)
• Warranty Card (by region) Yes
• Anti-dust Filter (Optional), Yes
• Universal Ceiling Mount Yes, CMG3

Dimension & Weight

• Dimensions (WxHxD) (mm) 416 x166 x351
• Net Weight (kg) 6.3

Projection System

• Projection System DLP
