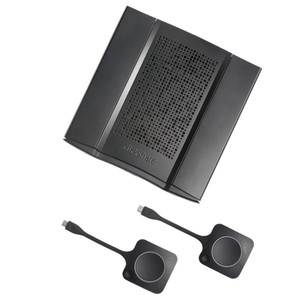

Barco CX-50 Clickshare Wireless Conferencing & Presentation System, 2 Buttons, Large Rooms (2nd Gen)

Superior wireless conferencing

ClickShare CX-50 brings superior, seamless one-click wireless conferencing. With our agnostic wireless room system, you start a hybrid meeting from your laptop, using any conference tool. No cables, no mess. Everyone is heard, everyone is seen, no matter where they are. Walk in, connect automatically to room devices like cameras, mics, speakers, sound bars for a supreme AV quality. Works with large selection of compatible solutions from global partners and brands. Make hybrid collaboration flow in large meeting rooms and conference rooms with only one click.

Choose how you want to collaborate

With ClickShare CX-50, you can “bring your own meeting” and decide how you and your guests collaborate. Plug & play with the ClickShare Button and choose for smart, intent-based meeting flows powered by the ClickShare App to to make your meetings intuitive and interactive. It offers a range of capabilities for more effective collaboration in your medium-to-large meeting rooms including annotation so meeting participants can add comments to slides, blackboarding so details can be updated in real time and complete touch-screen control through ClickShare CX-50 touchback support feature. Use the ClickShare Button and the ClickShare App for an intuitive and consistent user experience.

Better hybrid meetings? Yes! With smart, intuitive meeting flows in the ClickShare App

Smart intent-based meeting flows make your meeting experience stress-free.Walk into the room, you immediately see if the room is available or booked. Automatically connect to the meeting room (PresentSense ultrasound proximity detection) or plug in a Button. ClickShare guides you as a host or participant (HostFlow). Start the meeting from your personal calendar with a single click (One-Click-Join). Share your presentation, keep track of remote participant’s video, side by side (ConferenceView). Share full screen or application window, while keeping your laptop screen private for note taking. When you end the call, the meeting room becomes a digital signage display.

A user-friendly experience and enhanced security

A set of IT friendly features makes ClickShare Conference a perfect fit to any enterprise environment. ClickShare Conference, excelling in enhanced security, offers an advances network integration in any IT- network. With the XMS Cloud Management Platform you enjoy easy management of units, intuitive user experiences and clear analytics to drive your digital workplace.

Technical Specifications

• ClickShare Base Unit dimensions

  • Dimensions (HxWxD): 39mm x 200mm x 202mm
  • Power supply: Standard 110/220 V AC plug or USB-C (back)
  • Power consumption

    • Operational: 74.5W (max)
    • Standby: 0.27W - Networked standby: 3.7W
  • Weight: 985 gr
• General specifications

  • Operating system

    • Windows 10 or higher macOS 11 (BigSur) and higher
    • Android v11 and higher (ClickShare App)
    • iOS 14 and higher (ClickShare App)
  • System requirements: For a smooth experience with Microsoft Teams or Zoom

    • Minimum: Intel i3 dual-core processor / 8GB RAM / OS : Windows 10 latest build or Mojave latest build
    • Recommended: Intel i5 4-core processor / 8GB RAM / OS: Windows 10 latest build or Mac OS latest build
  • Video outputs

    • 4K UHD (3840*2160) @ 60Hz. HDMI 1.4b
    • 4K UHD (3840*2160) @ 60Hz.USB-C DP ALT mode (back)
  • Video inputs: 4k UHD (3840*2160) @30Hz.USB-C DP ALT mode (front)
  • Audio output
    USB, jack, HDMI
  • Connections

    • Front side: 1x USB-C 3.1
    • Rear side: 1x USB-C 3.1, 2x USB -A 3.1, 1x Ethernet LAN 2.5Gbit, Audio analog line out on jack socket (3.5mm)
  • ClickShare Buttons: 2
  • ClickShare App: Desktop & Mobile
  • Native protocols: Airplay, Google Cast, Miracast
  • Maximum number of simultaneous connections (with Buttons and/or App): 32
  • Noise Level

    • Max. 25dBA @ 0-30°C
    • Max. 30dBA @ 30-40°C
  • Authentication protocol

    • WPA2-PSK in stand alone mode
    • WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
  • Wireless transmission protocol: IEEE 802.11 a/g/n/ac and IEEE 802.15.1
  • Reach: Max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
  • Frequency band: 2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)
  • Temperature range

    • Operating: 0°C to +40°C (+32°F to +104°F)
    • Max: 35°C (95°F) at 3000m
    • Storage: -20°C to +60°C (-4°F to +140°F)
  • Humidity

    • Storage: 0 to 90% relative humidity, non-condensing
    • Operation: 0 to 85% relative humidity, non-condensing
  • Anti-theft system: Kensington lock
  • Certifications: FCC/CE
  • Touch screen support & Interactivity: Yes
  • Wireless conferencing: via App or Button
  • Local view: High quality
  • Network connection: LAN & WiFi (dual)
  • Management and reporting: Yes
  • Warranty: 1 year standard. 5 years coverage upon registering via SmartCare
