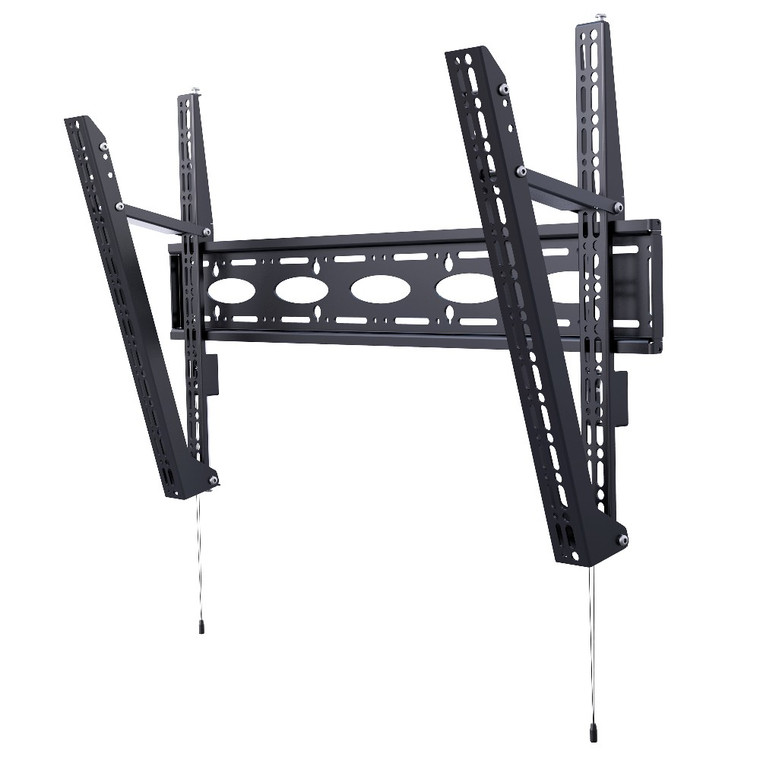

B-Tech BT9910/B XL Heavy Duty Universal Flat Screen Wall Mount with Tilt

For Screens up to 130kg

Designed to mount the largest screens on the market, the heavy duty BT9910 is capable of supporting weights of 130kg when wall mounted. Ideal for screens over 65" the mount features a choice of 4 tilt positions from 0° up to 15° with the universal interface accommodating screens with mounting patterns up to 1000 x 600mm. With keyhole fixings on the wall plate and a hook-on mounting system, the BT9910 is designed for an easy installation and features height adjustment screws which allow the screen to be levelled once mounted.

Key Features

• Designed to mount extra-large screens 65” and over
• Lateral adjustment of screen once mounted
• Adjustment screws allow screen to be levelled once mounted
• Heavy duty 4mm steel capable of supporting the heaviest screens
• Safety screws included to prevent removal of screen
• Compatible with B-Tech's System 2 pole mounting system
• Simple ‘hook-on’ installation with all mounting hardware included

Technical Specifications

• Recommended screen size: 65" (165cm) up to 100" (254cm)
• Max load: 130kg* (286lbs)
• VESA® and non-VESA fixings: up to 1000 x 600mm
• Tilt positions: 0°, 5°, 10° and 15°
• Distance from wall (when mounted flat): 82mm (3.2")
• Colour: Black

*Please note the max weight is limited to 80kg when mounted across two poles
