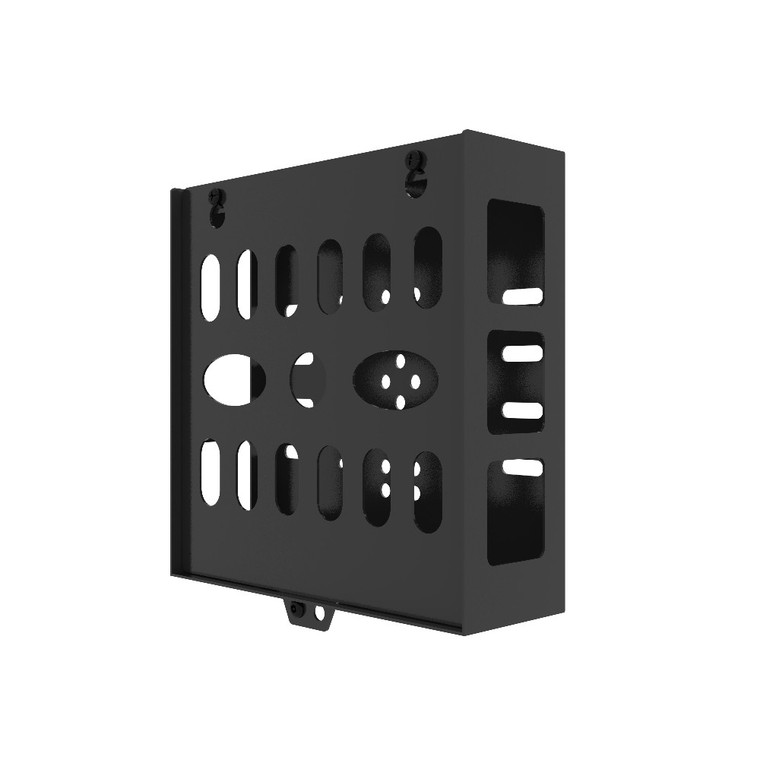

B-Tech BT7780/B Small AV Storage Cradle

Max Load: 3kg

The BT7780 is a compact AV storage cradle, ideal for storing small AV devices such as media players and digital signage units. The cradle can be easily mounted to Ø50mm poles using B-Tech's accessory collars, directly attached to System X rails and columns, or to the rear of a screen mount. The BT7780 can also be wall mounted using a VESA 100 screen mount. Its open-framework design ensures optimal airflow to keep stored devices cool, while providing secure protection preventing any unauthorised removal.

Key Features

• Ideal for storing AV devices such as media players and digital signage units
• Can be fixed to Ø50mm poles using BT7052/BT7841 Accessory Collars
• Mounts directly to BT8390 Rails or BT8380 Columns
• Mounts to the rear of B-Tech screen mounts, suitable for installing onto the back of trolleys and floor stands
• Can be wall mounted using the VESA 75/100 fixings on a screen mount
• Quick access to internal devices via a removable rear cover plate
• Padlock (not supplied) can be added for extra security of contents of the cradle
• Vented framework design to promote airflow and prevent overheating
• Easy installation

Technical Specification

• Max storage load: 3kg (6.6lbs)
• VESA fixings: up to 100 x 100
• Internal dimensions: H:231mm (9.1") W:231mm (9.1") D:64mm (2.5")
• External dimensions: H:235mm (9.25") W:235mm (9.25") D:80mm (3.15")
