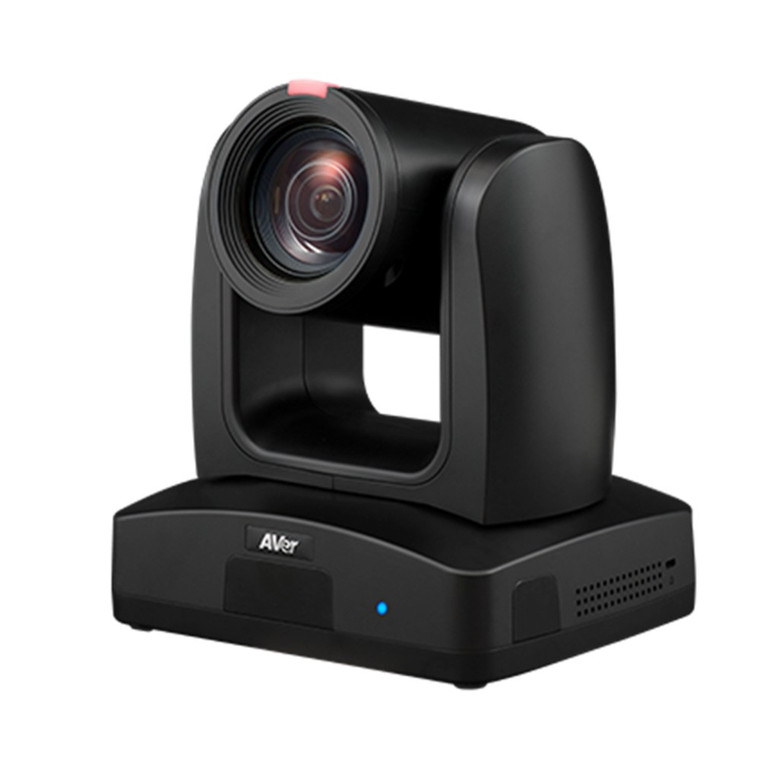

AVer TR315 UHD 4K Auto-Tracking PTZ Camera with 12x Optical Zoom
AVerPricing available upon request
Warranty: 5 Years
Exceptional Video Quality with Zero Compromises
The AVer TR315 AI Auto Tracking Camera delivers professional-grade lectures, sermons, trainings or whatever you need to stream! The 12X optical zoom, powerful 8MP camera and 4K resolution offer the range and picture quality to produce the highest quality productions. The advanced artificial intelligence (AI) technology allows you to track your speaker (full or half body) or pre-set shoot zone without a dedicated camera operator. The TR315 includes a number of impressive upgrades from the previous generation TR313V2, including improved performance and simultaneous output on USB and IP.
- 3 Auto Tracking Modes
- 12X Optical Zoom
- 3G-SDI, HDMI,IP USB Output
- 4K Resolution
- 8MP Picture
- Wide Dynamic Range
Harness the Magic of NDI/HX3
Includes the most recent edition of the NDI protocol is NDI® version 3 (NDI®|HX3). Features 4Kp60 NDI output with latency less than 100ms.
Presenter tracking
- Capture every interaction
- Either track full body or half body
- Simple click to track and manually follow an additional presenter via remote control or Web UI
Zone tracking
- Establish preset zones
- Create video focused on content
- Enhance the capture of content on multiple displays
Hybrid mode
- Camera auto switch between Presenter vs Zone mode
- Combines the best features of Presenter and Zone mode
- Flexibility of tracking presenter freely or fixed content
4Kp60
The TR315 can stream in 4K at 60 fps through HDMI, USB, and IP outputs. With simplified setups and without the hassle of tangled cables, you can seamlessly utilize multiple devices at once to create smooth video streams.
Voice tracking
Upgrade your audiovisual setup with AVer PTZ cameras and select compatible microphones for precise voice tracking using the camera preset points. Run PTZ Link software on in-room UC compute or PC or integrate MT300N for worry free security and OS updates. No need for costly programmers!
Wide dynamic range
The Wide Dynamic Range (WDR) of the camera uses special algorithms to balance dark or bright lighting for one clear image.
Tally light
Simplify multi-camera live video productions with an illuminated red light on the active camera.
Technical Specifications
- Camera
- Image Sensor: 1/2.8" CMOS
- Pixel: 8 megapixels
- Output resolution:
- Resolution: 4k*/1080p/720p
- Frame Rate : 60/59.94/50/30/29.97/25
- TV line: 1400 (center/wide)
- Focal length: f = 3.9 ~ 46.8mm
- Iris: F = 1.6 (Wide) ~ 4.8 (Tele)
- Optical zoom: 12X
- Digital zoom: 12X
- Total zoom: 12X
- D FOV: 80.6° (wide) ~ 7.7°(Tele)
- H FOV: 72.8° (wide) ~ 6.7°(Tele)
- V FOV: 44.1° (wide) ~ 3.8°(Tele)
- Minimum illumination: 0.5 lux (50 IRE, F1.6, Max. AGC, 1/30)
- Minimum working distance: Wide 0.1m, Tele 1.2m
- Focus: Auto/Manual/One Push
- White balance: Auto /Manual
- Gain: Auto /Manual
- Shutter speed: 1/1 s to 1/10,000 s
- BLC (Back Light Compensation): Yes
- Exposure: Auto, Manual, Priority AE( Shutter, IRIS), BLC, WDR
- Noise reduction: 2D/3D NR
- Frequency: 50Hz & 60Hz
- S/N ratio: ≥50dB
- Image effect: Mirror/ Flip Freeze / WDR / BLC
- WDR (Wide Dynamic Range): Yes
- Pan tilt parameter
- Pan rotation: -170°~+170°
- Tilt rotation: -30°~+90°
- Pan control speed: 0.1 ~ 100°/Sec
- Tilt control speed: 0.1 ~ 100°/Sec
- Preset speed:
- Pan : 200°/Sec
- Tilt : 200°/Sec
- Preset number: 10 Locations by Remote, 256 vis RS232
- IP streaming
- Resolution (Max): 4K (60PFS)
- Video compression: H.264, H.265, MJPEG
- Audio compression: AAC
- Protocol: IPv6, IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA over IP
- Bitrate: 512Kbps ~ 32Mbps
- Bitrate control mode: VBR/CBR
- Multi-stream capability:
- 4:USB/HDMI/IP/3G-SDI* (*3G-SDI only support 1080p60)
- MAX: 2160P60
- NDI®|HX3 capability: Yes
- I/O interface
- Video output: 3G-SDI, HDMI, IP, USB
- Audio output: 3G-SDI, HDMI, IP, USB
- Audio input: MIC in/Line in
- Baud rate: 2400, 4800, 9600, 38400
- Control interface: RS-232/RS-422/Ethernet
- Control protocol: VISCA/PELCO-D (RS232/RS422/IP), CGI (IP)
- Network interface: 10/100/1000 Base - T
- USB: 3.0
- POE+: PoE+ (IEEE802.3at)
- Power requirements: 12V
- USB
- Connector: USB3.0 (typeB)
- Video format: MJPG
- Resolution (Max): 2160P
- Video class: UVC 1.1
- Audio class: UAC 1.0
- Audio
- Channel: 2ch (stereo)
- Codec: AAC-LC(48K)
- Sample rate: 48Khz
- System
- IR remote control: Yes
- Tally: Yes
- Power consumption: 18W
- Operating temperature: 0°C ~ +40°C
- Operating humidity: 20%~80%
- Storage temperature: -20°C ~ +60°C
- Storage humidity: 20% ~ 95%
- Dimensions: W180*D145*H192mm
- Net Weight: 2.0 kg(+/-0.1) (4.4 lbs)
- Kensington Lock: Yes
- Application: Indoor
What's Included
- Camera
- Remote control
- 12V power adapter
- power cable
- Din8 to D-Sub9 cable
- RS232 in/out cable
- ceiling mount(x2)
- M2x4mm screw(x3)
- M3x4mm screw(x3)
- cable xing plates
- cable ties(x4)
- drilling paper
- quick guide
- Meeting Room Size:
- Medium
- Meeting Room Size:
- Large
- Field of View (FOV):
- Up to 90°
- Video Camera Resolution:
- Ultra HD - 4K
- Features:
- With Remote Control
- Features:
- Speaker Tracking
- Product Type:
- Video Conferencing
