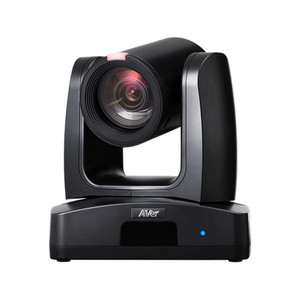

AVer TR211 AI Tracking PTZ Camera

AI Auto Tracking PTZ Camera

AVer’s new TR211 AI Auto Tracking PTZ Camera extends powerful and dependable Pro AV prowess to users across the spectrum of industries. The TR211 showcases proprietary functions — including Presenter Mode, Zone Mode, and Hybrid Mode tracking — driven by advanced AI processing. Seamlessly blending a 12X Optical Zoom lens, FHD 60 fps resolution, and the finesse of hybrid auto tracking and smooth PTZ operations, it’s already the quintessential choice for broadcasting, streaming, or recording.

12X Optical Zoom Magnifies Details

Experience the exceptional power of the TR211 camera's astounding 12X optical zoom. This feature seamlessly operates even while the camera is panning and tilting, granting you the ability to accentuate content and quickly shift between shooting perspectives. Embrace the advantage of dynamic, crystal-clear video feeds through the TR211’s unparalleled PTZ performance.

HDMI/USB/IP. 60 FPS.

Leverage the TR211's Full HD 1080p 60 fps streaming potential through HDMI, USB, and IP outputs. Free from intricate configurations and cable entanglements, you can effortlessly use multiple devices simultaneously to produce fluid video streams.

AI Auto Tracking Makes Streaming Smart & Effortless

Powered by highly precise processing, AVer's cutting-edge AI Auto Tracking algorithms easily identify and capture human figures and moving objects. You’ll never lose track of your target again with the TR211's unmatched tracking precision.

Presenter Mode

Get unparalleled tracking performance with Presenter Mode. This dynamic feature empowers presenters to venture beyond the stage to engage with their audience while the camera maintains seamless tracking.

Zone Mode

Zone Mode elevates your ability to capture content across multiple displays. Generate up to four dedicated Content Zones to consistently capture displayed information or items, prioritizing important presentation materials over the presenter's movements.

Hybrid Mode

Free your performers by enabling unrestricted movement with Hybrid Mode. Use preset areas for zone tracking, letting the camera seamlessly switch to a full view of each pre-defined location as performers move through the areas. If they move beyond these zones, the camera seamlessly adapts, switching to presenter mode to effortlessly and precisely track their movements.

Hardware Specifications

Front

1. Tally Lamp
2. IR Sensor
3. LED Indicator

Back

1. PoE+
2. RS-232
3. RS-422
4. USB 3.1 Type-B
5. Line In
6. HDMI
7. 3G-SDI
8. DC 12V

Technical Specificaitons

• Camera

  • Image Sensor: 1/2.8” 1080p Sony Exmor CMOS
  • Effective Picture Elements: 2 Megapixels
  • Output Resolutions: 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25
  • Minimum Illumination: 0.46 lux (IRE50, F1.6, 30fps)
  • S/N Ratio: ≥ 50 dB
  • Gain: Auto, Manual
  • TV Lines: 1000 (Center)
  • Shutter Speed: 1/1 to 1/32,000 sec
  • Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
  • White Balance: Auto, Manual, ATW, One Push, Indoor, Outdoor
  • Optical Zoom: 12X
  • Digital Zoom: 12X
  • Viewing Angles

    • DFOV : 80.6° (Wide) to 7.7° (Tele)
    • HFOV : 72.8° (Wide) to 6.7° (Tele)
    • VFOV : 44.1° (Wide) to 3.8° (Tele)
  • Focal Length: f = 3.9 mm (Wide) to 46.8 mm (Tele)
  • Aperture (Iris): F = 1.6 (Wide) to 2.8 (Tele)
  • Minimum Working Distance:

    • 0.3 m (Wide)
    • 1.5 m (Tele)
  • Pan / Tilt Angles:

    • Pan : ±170°
    • Tilt : +90° / -30°
  • Pan / Tilt Speed (Manual):

    • Pan : 0.1° to 100° / sec
    • Tilt : 0.1° to 100° / sec
  • Preset Speed:

    • Pan : 200° / sec
    • Tilt : 200° / sec
  • Preset Positions:

    • 10 (IR)
    • 256 (RS-232, RS-422, IP)
  • Camera Control - Interfaces:

    • RS-232 (DIN8)
    • RS-422 (RJ45)
    • IP
    • USB
  • Camera Control - Protocols:

    • VISCA (RS-232 / RS-422 / IP)
    • PELCO-D & PELCO-P (RS-232 / RS-422)
    • CGI (IP)
    • USB
    • ONVIF
  • Image Processing:

    • Noise Reduction (2D / 3D)
    • Flip
    • Mirror
    • WDR
    • BLC
  • Power Frequencies: 50 Hz, 60 Hz
• AI Auto Tracking Functions

  • Tracking Modes:

    • Presenter Mode
    • Zone Mode
    • Hybrid Mode
• Privacy Protection Mechanisms

  • Protection Mode: Sleep Mode
• AI Control Functions

  • Gesture Control: Yes
• Audio

  • Channels: 2ch Stereo
  • Codecs:

    • AAC-LC (48K)
    • PCM (8K)
  • Sample Rates: 48 / 44.1 / 32 / 24 / 16 / 8 KHz
• Interface

  • Video Outputs: 3G-SDI, HDMI, IP, USB
  • Audio Outputs: 3G-SDI, HDMI, IP, USB
  • Audio Inputs: MIC in, Line in
• General

  • Power Requirement: AC 100 - 240V to DC 12V/5A
  • Power Consumption: 19W
  • PoE: PoE+
  • Dimensions (W x H x D): 180.0 x 192.0 x 145.0 mm
  • Net Weight: 2.0 (±0.1) kg
  • Application: Indoor
  • Tally Lamp: Yes
  • Security: Kensington Slot
  • Remote Control: Infrared
  • Operating Conditions:

    • Temperature : 0 °C to +40 °C
    • Humidity : 20% to 80%
  • Storage Conditions
    • Temperature : -20 °C to +60 °C
    • Humidity: 20% to 95%
• IP Streaming

  • Resolution: 1080p 60fps
  • Network Video Compress Formats: H.264, H.265, MJPEG
  • Network Audio Compress Formats: AAC-LC (48K), PCM (8K)
  • Maximum Frame Rate: 1080p 60fps
  • Bit-Rate Control Modes: VBR, CBR (selectable)
  • Range of Bit-Rate Setting: 512 Kbps to 32 Mbps
  • Network Interface: 10 / 100 / 1000 Base-T
  • Multi-Stream Capability:
    • 5
    • 1080p 60fps: RTSP, HDMI, USB & NDI® HX3 / Dante AV-H
      1080p 60fps: 3G-SDI
  • Network Protocols: IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
  • AV over IP Protocols: NDI® HX3 & Dante AV-H
• USB

  • Connector: USB 3.1
  • Video Formats: MJPEG, YUY2
  • Audio Format: PCM
  • Maximum Video Resolution: 1080p
  • USB Video Class (UVC): UVC 1.1
  • USB Audio Class (UAC): UAC 1.0
• Web UI

  • Live Video Preview: Yes
  • Camera PTZ Control: Pan, Tilt, Zoom, Focus, Preset Control
  • Camera / Image Adjustment: Exposure, White Balance, Picture
  • Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS
• Software Tools

  • IP Search and Configuration Tool: Supports Windows® 7 or later
  • Enterprise Management (PTZ Management): Supports Windows® 10 or later
  • PTZ Control Panel: Supports iOS & iPadOS® 11 or later
  • PTZ Link: Supports Windows® 7 or later, macOS® 10.14 or later
  • OBS Plugin for PTZ Cameras: Supports Windows® 8 or later, macOS® High Sierra v10.13 or later
  • CaptureShare: Supports Windows® 7 or later, macOS® 10.14 or later
  • Room Management (PTZApp 2): Supports Windows® 7 or later, macOS® 11.6 or later
  • Cloud Management: Supports Windows® 7 or later, macOS® 10 or later

What's Included

• Camera
• Remote Control
• RS-232 In/Out Cable
• Din 8 To D-Sub 9 Cable
• Power Adapter
• Power Cord
• Cable Ties (x 4)
• M2 x 4 mm Screws (x 3)
• M3 x 6 mm Screws (x3)
• 1/4'-20L 6.5mm Screws (x2)
• Cable Fixing Plate
• Ceiling Mount Brackets (x 2)
• Drilling Paper
• Quick Start Guide
