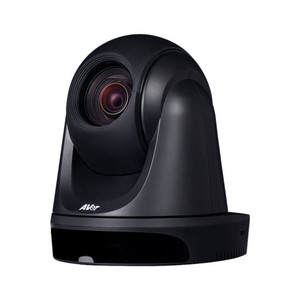

AVer PTZ310 PTZ Full HD Camera

AVer PTZ310 PTZ Full HD Camera

AVer
SKU:
PTZ310

Pricing available upon request

Warranty: 3 Years
Current Stock:
Description

Professional PTZ Camera

AVer PTZ310 is available in white or grey and equipped versatile functions to suite every classroom, hospital, or business. Creating the superior video quality, the PTZ310 makes you feel the action in a scene!

  • 12X Optical Zoom
  • SmartShoot
  • SmartFrame
  • HDMI/IP/3G-SDI/USB
  • Full HD 1080p60

12X Optical Zoom

Resounding image quality and a 12X optical zoom enable you to capture crystal-clear footage in any classroom, hall, or activity center.

Full HD Resolution

The PTZ310 provides outstanding image quality in full HD 1080p at 60fps. It also offers the best auto focus, auto exposure, and auto white balance performance.

Up to 255 Preset Locations

Always be prepared to capture every angle and change the recording view at a moment’s notice with up to 255 preset locations through VISCA via RS232 and RS422 functionality, and 10 preset locations through IR remote control.

Stable Motion Control

Fully optimize your recording with customizable speed settings from 0.1°to 200° per second that maximize the agility and precision of pan/tilt rotation motion control.

Seamless Tracking Between Your Preset Zones

AVer SmartShoot optimizes your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot’s preset zone tracking you can create an uncompromising multi-camera feel with just one PTZ310 across all your preset zones. Save effortand time, while providing your video with a huge variety of shooting ranges.ptz310

Fit Your FOV in Seconds

AVer’s new SmartFrame provides you with one-touch face targeting technology to create stunning video content fast. SmartFrame instantly adjusts your FOV to fit everyone on screen at stunning speed so you can start recording presentations, lectures, and more with no hassle. Perfect for capturing multiple people, SmartFrame makes video content capturing easy and enjoyable.

Hardware Spec

Front

Side

Back
  1. Camera lens
  2. IR sensor
  3. LED indicator
  4. Kensington lock
  5. PoE+ port
  6. RS-232 port
  7. RS-422 port
  8. Audio in
  9. mini-USB port
  10. HDMI port
  11. 3G-SDI port
  12. DC power jack



Technical Specifications

  • Camera
    • Image Sensor: 1/2.8" 1080p 60fps Exmor CMOS
    • Effective Picture Elements: Approx. 2.1 megapixels
    • Output Resolutions:
      • Auto
      • 1080p@60, 1080p@59.94, 1080p@50, 1080i@60, 1080i@59.94, 1080i@50, 1080p@30, 1080p@29.97, 1080p@25, 720p@60, 720p@59.94, 720p@50
    • Minimum Illumination: 0.4 lux (IRE50, F1.6, 30fps)
    • S/N Ratio: ≥ 50 dB
    • Gain: Auto, Manual
    • TV Lines: 800 (Center/Wide), 700 (Corner/Wide)
    • Shutter Speed: 1/1s – 1/32,000s
    • Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC
    • White Balance: Auto / Indoor / Outdoor / One-push / Manual (2500 – 10000)
    • Optical Zoom: 12X
    • Digital Zoom: 12X
    • Horizontal Viewing Angle: 72.5° (Wide) – 6.3° (Tele)
    • Focal length: f = 3.9 mm (Wide) – 46.8 mm (Tele)
    • Aperture (Iris): F = 1.6 (Wide) – 2.8 (Tele)
    • Minimum Working Distance: 0.3 m (Wide), 1.5m (Tele)
    • Pan/Tilt Angles: Pan: +- 170° ; Tilt: +90° / -30°
    • Pan/Tilt Speed (Manual): Pan: 0.1 – 100° /sec, Tilt: 0.1 – 100° /sec
    • Preset Speed: Pan: 200° /sec, Tilt: 200° /sec
    • Preset Positions: 10 (IR), 255 (RS-232)
    • Camera Control - Interfaces: RS-232 (DIN9) / RS-422 (RJ45)
    • Camera Control - Protocols: VISCA (RS-232/RS422/IP), CGI (IP), Pelco-D, Pelco-P
    • Image Processing: Noise Reduction (2/3D), Flip, Mirror
    • Power Frequencies: Auto, 50 Hz, 60 Hz
  • Audio
    • Channels: 2ch Stereo
    • Codecs: AAC-LC (48/44.1/32/24K), G.711/PCM
    • Sample Rates: 48/44.1/32/24/16/8Khz
  • Interface
    • Video Outputs: 3G-SDI, HDMI, IP, USB
    • Audio Outputs: 3G-SDI, HDMI, IP, USB
    • Audio Inputs: MIC / Line in
  • General
    • Power Requirement: AC100V-AC240V to DC12V/5A
    • PoE: POE+ (IEEE 802.3at), Class 4
    • Dimensions L=180 mm, W= 145 mm, H= 183.5 mm
    • Net Weight: 1.74 kg
    • Application: Indoor
    • Security: Kensington Slot
    • Remote Control: Infrared
    • Operating Conditions:
      • Temperature: 0°C – +40°C
      • Humidity: 20% – 80%
    • Storage Conditions:
      • Temperature: -20°C – +60°C
      • Humidity: 20% – 95%
  • IP Streaming
    • Resolution: 1920x1080, 1280x720, 960x540, 640x480
    • Network Video Compress Formats: H.264 (High Profile), MJPEG
    • Maximum Frame Rate: H.264: 60fps (1920x1080), MJPEG: 30fps (1920x1080)
    • Bit-Rate Control Modes: VBR/CBR (selectable)
    • Bit-Rate Range Setting: 512Kbps – 32Mbps
    • Network Interface: 10/100/1000Base-T
    • Multi-Stream Capability: 2
    • Network Protocols: IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, ONVIF, VISCA over IP
  • USB
    • Connector: Micro-USB 2.0
    • Video Formats: YUV, MJPEG, H.264
    • Maximum Video Resolution: Up to 1080p
    • USB Video Class (UVC): UVC 1.1
    • USB Audio Class (UAC): UAC 1.0
  • Web UI
    • Live Video Preview: Yes
    • Camera PTZ Control: Pan, Tilt, Zoom, Focus, Preset Control
    • Camera / Image Adjustment: Exposure, White Balance, Picture
    • Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS
  • Software Tools
    • Device IP Searching, Configuration Tool
      • Windows Application
Additional Information
Meeting Room Size:
Medium
Meeting Room Size:
Large
Field of View (FOV):
Up to 90°
Video Camera Resolution:
Full HD - 1080p
Features:
With Remote Control
Product Type:
Video Conferencing
