Warranty: 3 Years
Medical Grade PTZ Camera
The AVer MD120UI is the world's first PTZ camera specifically designed for patient monitoring. Powered by advanced AI technologies, monitoring patients has become a breeze, allowing healthcare providers to stay vigilant and attentive to their patients' needs. 20X optical zoom & 4K imaging capabilities along with IR night view function provide crystal-clear visual monitoring of patients, enabling 24-hour patient monitoring with no blind spots.
Superb Camera Quality
Thanks to MD120UI’s superior autofocus, zoom speed, and rapid camera movements, the 4K resolution at 20X optical zoom lens is able to capture even the smallest of details. This allows doctors and healthcare providers to make precise assessments efficiently with the help of up to 256 preset points provided by the camera.
Innovative AI Technologies
The MD120UI is equipped with state-of-the-art AI algorithms that facilitate the automatic detection of patient’s body contour and capture specific areas of interest on patients, such as face and eyes (AI Facial/Eyes Tracking). By utilizing the AI modes, medical professionals can monitor patients and take necessary precautions with increased efficiency. Furthermore, AVer is creating more AI modes to further assist medical professionals and patients.
Your Privacy Matters
In any healthcare setting, it is crucial to respect patients' trust and privacy. By activating MD120UI’s Privacy Mode, the transmission of video and audio data can be stopped, ensuring that no information leaves the ward. Rest assured that your privacy is protected.
Built-in Microphone for Better Real-time Monitoring
Embedded microphones can transmit all sounds in the patient room to the nursing station, alerting medical staff of real-time, crucial information for proper intervention and offering more possibilities for enhancing virtual care settings.
AI Detection in Patient Ward
The MD120UI is equipped with an Edge-AI computer vision model that can automatically detect abnormal events in the ward. For instance, when a patient falls within the camera's field of view, it triggers an alert to notify nursing station personnel. These AI detection features are all built into the MD120UI camera device and do not require installing other sensor pads or wearables.
24/7 Monitoring with Night Vision
The MD120UI has moved patient monitoring a step forward with its Infrared Night Vision function. This makes 24/7 patient monitoring possible: healthcare providers can monitor patients around the clock without disturbing patient’s sleep or compromising their own safety, providing secure and efficient patient care.
Key Features
- HDMI, IP, USB
- IR Auto Night View Function
- AI Tracking & Monitoring
- Medical Grade IEC 60601-1-2 Certification
- POE+ Supported
- Anti-UV Housing
- Privacy Indicator
Hardware Specifications

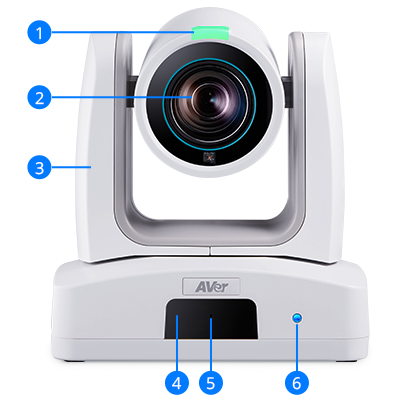

Front
- Privacy Indicator
- IR Night Vision
- Anti-UV Housing
- IR Sensor
- Microphone
- Power Indicator

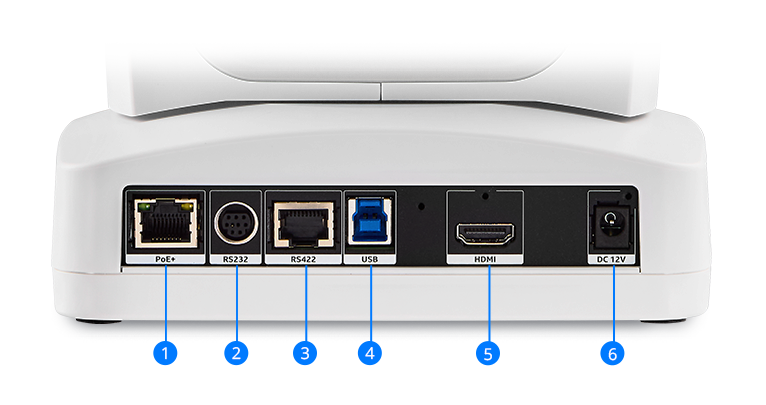

Back
- PoE+
- RS-232
- RS-422
- USB 3.1 Gen 1 Type-B
- HDMI
- DC 12V
Technical Specifications
- Camera
- Image Sensor: 1/2.8' CMOS
- Effective Picture Elements: 8 Megapixels
- Output Resolutions:
- Resolutions: 4K / 1080p / 720p
- Frame Rates: 60 / 59.94 / 50 / 30 / 29.97 / 25
- Minimum Illumination: 0.5 lux (50 IRE, F1.6, Max. AGC, 1/30)
- S/N Ratio: ≥ 50 dB
- Gain: Auto, Manual
- TV Lines: 1000 (Center / Wide)
- Shutter Speed: 1/1s to 1/10,000s
- Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
- White Balance: Auto / Manual
- Optical Zoom: 20X
- Digital Zoom: 1X
- Total Zoom: 20X
- Viewing Angles:
- DFOV: 69.2° (Wide) to 4.1° (Tele)
- HFOV: 62.3° (Wide) to 3.6° (Tele)
- VFOV: 37.7° (Wide) to 2.1° (Tele)
- Focal Length: f = 4.5 mm (Wide) to 90 mm (Tele)
- Aperture (Iris): F = 1.8 (Wide) to 4.7 (Tele)
- Minimum Working Distance: 0.1 m (Wide) , 1.2 m (Tele)
- Pan / Tilt Angles: Pan: ±170°, Tilt: +90° / -30°
- Pan / Tilt Speed (Manual): Pan: 0.1° to 100° / sec, Tilt: 0.1° to 100° / sec
- Preset Speed: Pan: 200° / sec, Tilt: 200° / sec
- Preset Positions: 10 (IR), 256 (RS-232, RS-422, IP)
- Camera Control - Interfaces: RS-232 / RS-422 / Ethernet
- Camera Control - Protocols: VISCA (RS-232 / RS-422 / IP), CGI (IP)
- Image Processing: Mirror / Flip / Freeze / WDR / BLC
- Power Frequencies: 50 Hz, 60 Hz
- AI Function
- Mode: Eye Tracking
- Privacy
- Protection Mode: Privacy Mode, Privacy Indicator
- General
- Power Requirement: 12V
- Power Consumption: 24W
- PoE: PoE+ (IEEE802.3at)
- Dimensions: 180(W) x 145(D) x 183.5(H) mm
- Net Weight: 1.7 ± 0.1 kg
- Housing Material: Anti-UV
- Application: Indoor
- IR Night Vision: Yes
- Security: Kensington Slot
- IR Remote Control: Yes
- Operating:
- Temperature: 0 °C to +40 °C
- Humidity: 20% to 80%
- Storage Conditions:
- Temperature: -20 °C to +60 °C
- Humidity: 20% to 95%
- Audio
- Channels: 2ch Stereo
- Codec: AAC-LC (48K)
- Built-in Microphone: 1 (Omni-Directional)
- Interface
- Video Outputs: HDMI, IP, USB
- Audio Outputs: HDMI, IP, USB
- Audio Inputs: N/A
- IP Streaming
- Resolution: 4K 60fps
- Network Video Compress Formats: H.264, H.265, MJPEG
- Maximum Frame Rate: 4K 60fps
- Bit-Rate Control Modes: VBR, CBR
- Range of Bit-Rate: 512Kbps to 64Mbps
- Network Interface: 10 / 100 / 1000 Base-T
- Multi-Stream Capability: 2 (RTSP / Web page), 4K 60fps Max.
- Network Protocols: IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP RTP/RTCP, RTSP, RTMP,VISCA over IP
- USB
- Connector: USB 3.0 (Type-B)
- Video Formats: MJPEG
- Maximum Video: 2160p
- USB Video Class (UVC): UVC 1.1
- USB Audio Class (UAC): UAC 1.0
- Web UI
- Live Video Preview: Yes
- Camera PTZ Control: Pan, Tilt, Zoom, Focus, Preset Control
- Camera / Image: Exposure, White Balance, Picture
- Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS
- Software Tools
- IP Search and Configuration Tool: Support Windows® 7 or later
- ViewCare: Support Windows® 7 or later
- PTZ Control Panel: Supports iOS & iPadOS® 11 or later
- Camera Setting Tool: Supports Windows® 7 or later, macOS® 10.14 or later
What's Included
- Camera
- Drilling Paper
- Ceiling Mount Bracket
- QR Code Card
- Cable Fixing Plate
- M2 x 4 mm Screw (x3)
- Power Adapter & Power Cord
- 1/4”-20 L=6.5 mm Screw (x2)
- Remote Control
- M3 x 6 mm Screw (x3)
- USB Cable (Type-B)
