Warranty: 3 Years

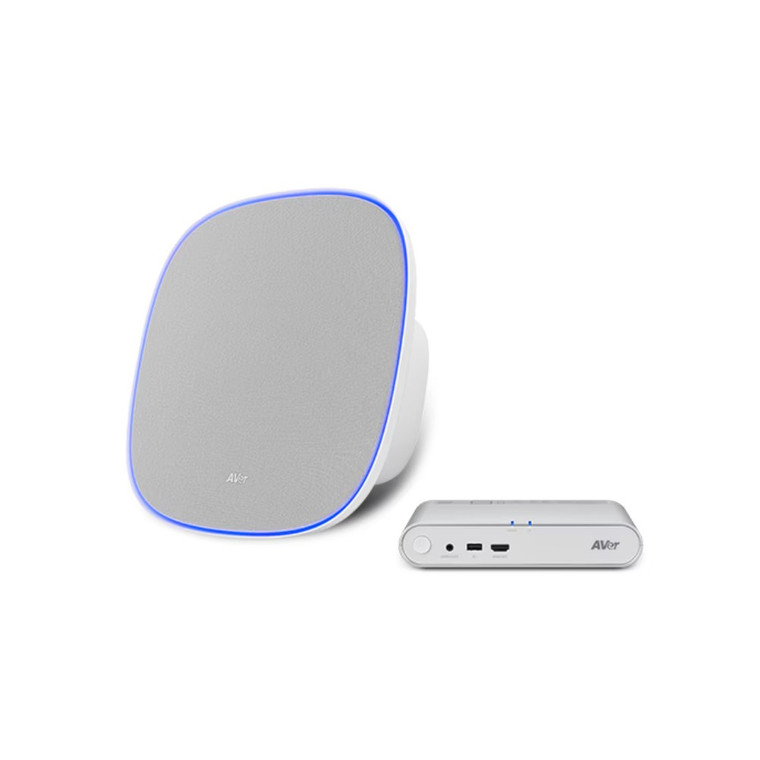

Ceiling Speakerphone System for Rooms of Any Size
Elevate your conference experience with the AVer FONE700, the perfect ceiling speakerphone system. With its cutting-edge technology, the FONE700 allows for seamless integration of our suite of audio-visual products, ensuring the highest-quality sound and picture to meet your conference needs. This includes connecting two cameras, a display, an external speaker, and Bluetooth devices, creating a truly unified AV hub for your conference needs.
Transform Any Space into a Pro Conference Room
The FONE700 takes any room pro in seconds. It connects with just one cable, eliminating tangled wires and complex configurations. No tech expertise needed - simply plug in and go. No technical expertise is required - simply connect and experience a seamless conferencing upgrade.
Focus on the Conversation, Not the Setup
The FONE700 connects in seconds, letting you focus on the conversation, not the equipment. Intuitive controls and seamless device integration keep the meeting flowing, maximizing your efficiency and fostering effortless collaboration. Let you focus on what matters most important.
Single Cable, Diverse Configuration
The FONE700 requires just one RJ45 cable for both power and internet. It supports up to four speakerphones with a maximum range of 40 meters, enabling optimal adaptability for different-sized conference rooms.
Seamless Integration with Numerous Devices
The FONE700 connectivity hub enables seamless integration of our full suite of audio-visual products, including external speakers and cameras, as well as external devices such as monitors and Bluetooth equipment.
Hardware Spec

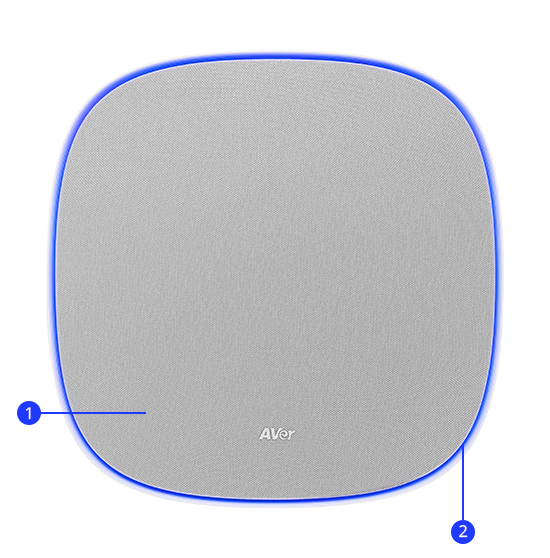

Speakerphone (Front)
- Speakerphone
- LED indicator

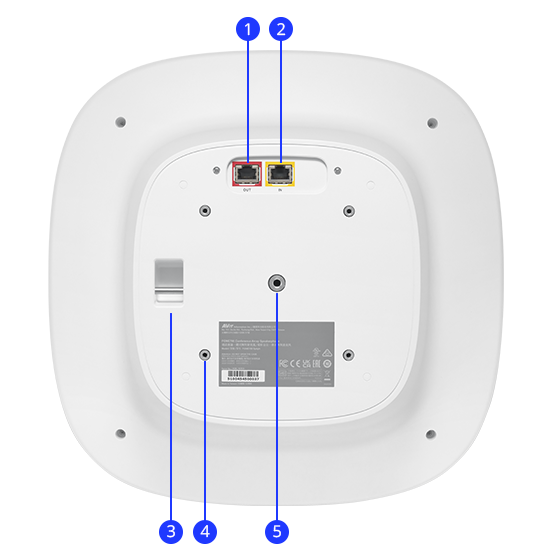

Speakerphone (Back)
- RJ45 out port (red)
- RJ45 in port (yellow)
- Tie-off point
- M4 screw holes (x4)
- 1/4'-20 screw hole

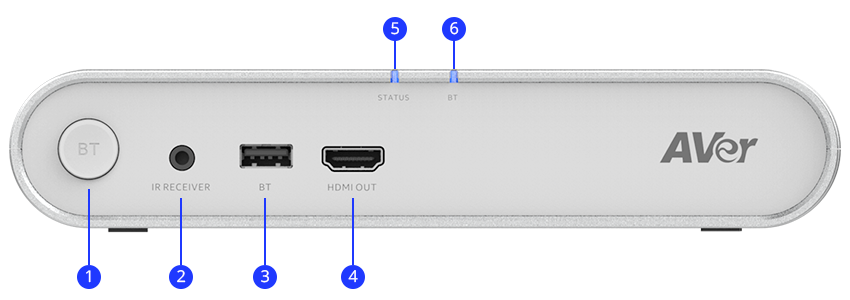

Hub (Front)
- Power/Bluetooth button
- IR receiver port
- Bluetooth dongle port
- HDMI-out port
- Status LED indicator
- Bluetooth status LED indicator

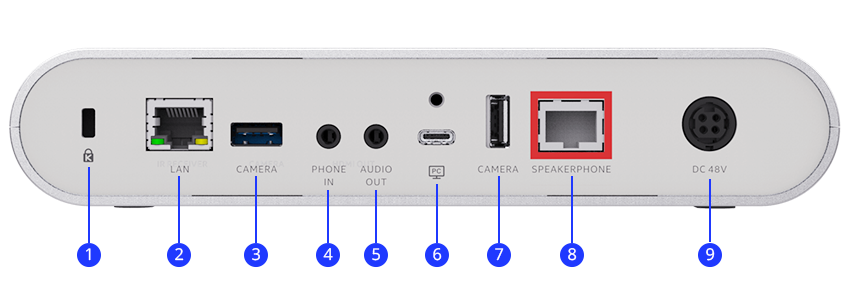

Hub (Back)
- Kensington lock
- LAN port
- USB 3.0 type-A port (for cameras)
- 3.5 mm phone-in jack
- 3.5 mm audio-out jack
- USB 3.0 type-C port
- USB 3.0 type-A port (for cameras)
- RJ45 speakerphone port (red)
- DC power jack (48 V)
Technical Specificaitons
- FONE700 System (Hub + Speakerphone)
- Full duplex acoustic system for optimal meeting experience
- One cable daisy chain up to 4 speakerphones for flexible installation
- Versatile connectivity for video conferencing integration
- Advanced acoustic features optimized for ceiling installation, powered by AVer algorithm for uncompromised audio quality across daisy-chain setup
- Acoustic echo cancellation (AEC)
- Advanced noise reduction (NR)
- Automatic gain control (AGC)
- Double-talk detection
- De-reverberation
- AI noise suppression
- Voice fencing
- FONE700 Speakerphone
- 3 units directional + 18 units omnidirectional microphones
- Acoustic pickup angle: 360 degrees per unit
- Acoustic pickup range*: up to 3.5 m radius per unit
- Speakerphone volume: adjustable, up to 99 dB SPL at 0.5 m
- Daisy chain: up to 4 speakerphones with AVer-supplied RJ45 cable(s)
- FONE700 Hub
- Acoustic DSP Hub for speakerphone, expandable up to 3 additional units
- One cable 48 V powered from Hub to 4 speakerphones via AVer-supplied Cat5 cable; no additional power required
- Integration for video conferencing with versatile connections for:
- USB 3.0 type-C port for PC connection
- USB 3.0 type-A ports for AVer USB cameras hub; up to 2 cameras connected
- USB 2.0 type-A port for BT dongle connection
- Speakerphone port for AVer proprietary daisy-chained technology
- LAN port for remote control and AVer Virtual Audio technology
- 4K HDMI output (for USB to display output from connected PC)
- 3.5 mm line-out jack for external speaker or hearing aid system
- 3.5 mm phone-in jack for phone calls or external microphone input
- Connection
- USB with USB Audio Class (UAC) 1.0
- RJ45 with AVer proprietary Virtual Audio (IP streaming)
- Phone in (1Vrms input)
- Control
- USB Plug and Play: Video conference software with mute/unmute, volume up/down
- Room Management (PTZApp 2) for advanced settings and AVer Virtual Audio streaming
- Web browser for advanced remote settings
- Security
- Safety tether attachment points on speakerphone
- Kensington slot on Hub
- Power Supply
- AC 100 V to 240 V, 50/60 Hz
- Consumption: 48 V, 3.75 A
- System Requirements
- Power Supply
- AC 100 V to 240 V, 50/60 Hz
- Consumption: 48 V, 3.75 A
- Environmental Data
- Operating temperature: 0°C to 40°C
- Operating humidity: 20% to 80%
- Storage temperature: -20°C to 60°C
- Storage humidity: 20% to 80%
- Software Tools
- Room Management (PTZApp 2): Supports Windows® 7 or later, macOS® 11.6 or later
- Enterprise Management (PTZ Management): Supports Windows® 10 or later
- Cloud Management: Supports Windows® 7 or later, macOS® 10 or later
- Dimensions
- Package dimensions: 39.2 x 39.2 x 24 cm
- Package weight: 7.83 kg
- Hub: 21 x 12.5 x 4 cm/1.06 kg
- Speakerphone: 37 x 37 x 16.5 cm/3.31 kg
What's Included
- FONE700 Ceiling Speakerphone
- FONE700 Hub
- Power adapter (48 V/3.75 A)
- Power cable
- RJ45 cable (10 m)
- USB-C 2.0 cable (5 m)
- Hub wall mount bracket with screws
- Mount drill template
- Quick Start Guide
- Product Type:
- Speakerphone
