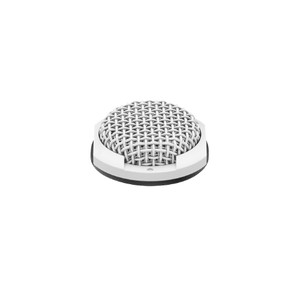

Audio-Technica U851RWB Cardioid Condenser Boundary Microphone (White)

Audio-Technica U851RWB Cardioid Condenser Boundary Microphone (White)

Audio-Technica
SKU:
U851RWB

Pricing available upon request

Current Stock:
Description

The phantom-powered U851Rb condenser boundary microphone offers outstanding speech intelligibility and transparent sound quality for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing, and other demanding sound pickup situations. The microphone is equipped with a PivotPoint® rotating output connector, UniSteep® filter, and UniGuard® RFI-shielding technology. It accepts interchangeable condenser elements – omnidirectional (360°), cardioid (120°), and hypercardioid (100°) – available separately. With a heavy die-cast case and silicon foam bottom pads to minimize coupling of surface vibration to the microphone, the U851Rb is equipped with self-contained electronics, eliminating the need for an external power module. Threaded inserts on the bottom of the microphone allow it to be mounted with screws for increased security.

Key Features

  • Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
  • Superior off-axis rejection for maximum gain before feedback
  • PivotPoint® rotating output connector allows cable to exit from either the rear or the bottom of the microphone
  • Small-diameter UniPoint® element near boundary eliminates phase distortion and delivers clear, high-output performance
  • Available interchangeable elements permit angle of acceptance from 100° to 360°
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Self-contained electronics eliminate need for external power module
  • Heavy die-cast case and non-slip silicone foam bottom pads minimize coupling of surface vibration to the microphone
  • Low-profile design with low-reflectance finish for minimum visibility
  • Threaded inserts on bottom of microphone allow it to be mounted with screws for increased security

Technical Specifications

  • Element: Fixed-charge back plate, permanently polarized condenser
  • Frequency Response: 20-20,000 Hz
  • Low Frequency Roll Off: 80 Hz, 18 dB/octave
  • Open Circuit Sensitivity: -34 dB (19.9 mV) re 1V at 1 Pa
  • Maximum Input Sound Level: 134 dB SPL, 1 kHz at 1% T.H.D.
  • Dynamic Range: 108 dB, 1 kHz at Max SPL
  • Signal-to-Noise Ratio: 68 dB, 1 kHz at 1 Pa, A-weighted
  • Phantom Power Requirements: 11-52V DC, 4.4 mA
  • Switches: Flat, roll-off
  • Weight: 253 g (8.9 oz)
  • Cable: 25.0' (7.6 m) long, 0.13" (3.2 mm) diameter, 2-conductor, shielded cable with TA3F and XLRM connectors
  • Dimensions: 0.91" (23.0 mm) H x 3.30" (83.9 mm) W x 4.25" (108.0 mm) D
  • Output Connector: Microphone: TB3M-type Cable: 3-pin XLRM-type
  • Optional Interchangeable Elements: UE-C cardioid (120°), UE-H hypercardioid (100°), UE-O omnidirectional (360°)
Additional Information
Product Type:
Microphone
