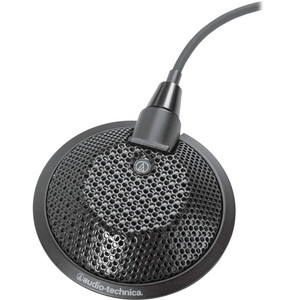

Audio-Technica U851RbO Omnidirectional Condenser Boundary Microphone (Black)

Audio-Technica U851RbO Omnidirectional Condenser Boundary Microphone (Black)

Audio-Technica
SKU:
U851RBO

Pricing available upon request

Current Stock:
Description

The phantom-powered U851RbO omnidirectional condenser boundary microphone offers outstanding speech intelligibility and transparent sound quality for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations. The omnidirectional microphone is equipped with a PivotPoint® rotating output connector, UniSteep® filter and UniGuard® RFI-shielding technology. It accepts interchangeable condenser elements, available separately, in cardioid and hypercardioid polar patterns. With a heavy die-cast case and silicon foam bottom pads to minimize coupling of surface vibration to the microphone, the U851RbO is equipped with self-contained electronics, eliminating the need for an external power module. Threaded inserts on the bottom of the microphone allow it to be mounted with screws for increased security.

Key Features

  • Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
  • Superior off-axis rejection for maximum gain before feedback
  • PivotPoint rotating output connector allows cable to exit from either the rear or the bottom of the microphone
  • Small-diameter UniPoint element near boundary eliminates phase distortion and delivers clear, high-output performance
  • Available interchangeable elements permit angle of acceptance from 100° to 360°
  • UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Self-contained electronics eliminate need for external power module
  • Heavy die-cast case and non-slip silicone foam bottom pads minimize coupling of surface vibration to the microphone
  • Low-profile design with low-reflectance finish for minimum visibility
  • Threaded inserts on bottom of microphone allow it to be mounted with screws for increased security

Technical Specifications

  • Element: Fixed-charge back plate, permanently polarized condenser
  • Polar Pattern: Omnidirectional
  • Frequency Response: 20-20,000 Hz
  • Open Circuit Sensitivity: -31 dB (28.2 mV) re 1V at 1 Pa
  • Impedance: 50 ohms
  • Maximum Input Sound: Level 132 dB SPL, 1 kHz at 1% T.H.D.
  • Low Frequency Roll Off: 80 Hz, 18 dB/octave
  • Switches: Flat, roll-off
  • Signal-to-Noise Ratio: 73 dB, 1 kHz at 1 Pa, A-weighted
  • Phantom Power Requirements: 11-52V DC, 4.4 mA
  • Weight: 253 g
  • Dimensions: 23.0 mm H x 83.9 mm W x 108.0 mm D
  • Output Connector Microphone: TB3M-type
  • Cable: 3-pin XLRM-type
  • Cable 7.6 m long, 3.2 mm diameter, 2-conductor, shielded cable with TA3F and XLRM connectors
Additional Information
Product Type:
Microphone
