ATEN USB VGA Virtual Media KVM Adapter with Smart Card Support

ATEN USB VGA Virtual Media KVM Adapter with Smart Card Support

ATEN
SKU:
KA7177-AX

Pricing available upon request

Warranty: 2 Years
Current Stock:
Description

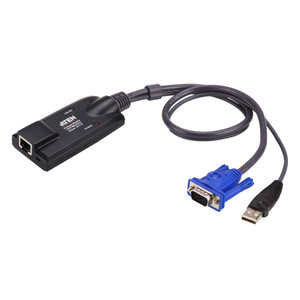

The KA7177 KVM Adapter Cable connects the KVM switch to the video and USB ports of the target computer. The KA7177 also provides a USB plug to connect the target computer for Smart Card/CAC support. With its small form factor and light weight design, it represents the next generation of KVM Adapter Cables – offering superior signal compensation and delay skew techniques for greatly enhanced video quality.

Key Features

  • Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances
  • Keyboard and mouse emulation – keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port
  • Lifetime firmware upgrades
  • Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
  • Built in ASIC for greater reliability and compatibility
  • Compact size
  • Virtual Media Support
  • Smart Card / CAC Reader Support

* This maximum resolution may vary depending on the transmission distance. For more details, please refer to the product pages of the connected KVM switches.

Technical Specifications

  • Connectors
    • Link: 1 x RJ-45 Female
    • Computer:
      • 2 x USB Type A Male
      • 1 x HDB-15 Male
  •  LEDs
    • Online: 1 (Green)
    • Power: 1 (Orange)
  • Environmental
    • Operating Temperature: 0-50°C
    • Storage Temperature: -20–60°C
  • Physical Properties
    • Housing: Plastic
    • Weight: 0.16 kg ( 0.35 lb )
    • Dimensions (L x W x H): 9.00 x 4.30 x 2.18 cm (3.54 x 1.69 x 0.86 in.)

What's Included

  • 1x KA7177 KVM Adapter Cable
  • 1x Rack Mount Kit
  • 1x Rack Mounting Guide
Additional Information
Product Type:
KVM Adapters
