Warranty: 2 Years

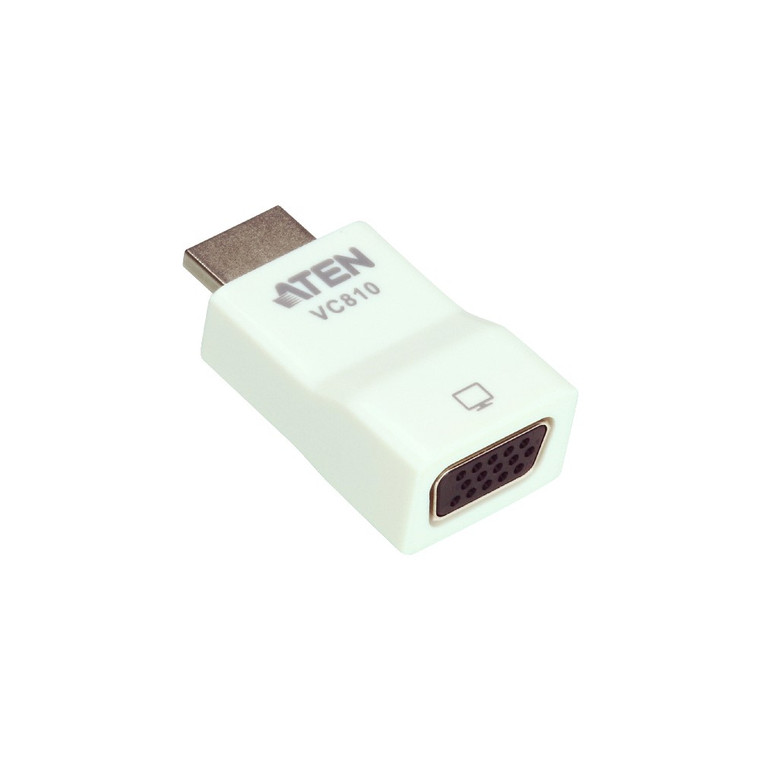

The VC810 is an HDMI-to-VGA converter that allows you to connect an HDMI source (e.g. laptop, PC, ultrabook, etc) directly to a VGA display (e.g. projector, LCD monitor, etc) without upgrading to an HDMI-compatible display at extra cost. It supports frequently used video resolutions of up to 1920 x 1200. The VC810 is compact and convenient to install with no software needed – simply make the hardware connections. In addition, this plug-n-play converter does not require an external power source, which is ideal for environments like conference room where briefings or presentations take place, ensuring great portability, installation simplicity, and manageability.
Key Features
- Converts HDMI signals to VGA output
- Superior video quality – up to 1920 x 1200, 1080p
- Supports wide screen formats
- Non-powered
Technical Specifications
- Video Input
- Interfaces: 1 x HDMI Type A Male (Black)
- Impedance: 100 Ω
- Video Output
- Interfaces: 1 x HDB-15 Female (Black)
- Impedance: 75 Ω
- Video
- Max. Pixel Clock: 200 MHz
- Max. Resolution: Up to 1920 x 1080/60Hz
- Environmental
- Operating Temperature: 0-60°C
- Storage Temperature: -10 - 70°C
- Humidity: 40 - 85% RH, Non-Condensing
- Physical Properties
- Housing: Plastic
- Weight: 0.01 kg ( 0.02 lb )
- Dimensions (L x W x H): 4.55 x 2.30 x 1.48 cm (1.79 x 0.91 x 0.58 in.)
What's Included
- 1x VC810 HDMI-to-VGA converter
- Product Type:
- Video Converters
