Warranty: 2 Years

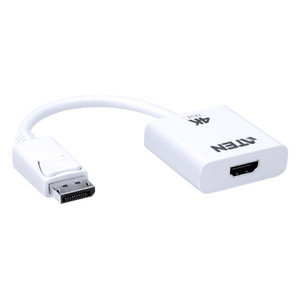

The VC986 is an active DisplayPort to HDMI adapter that allow you to connect your Mini DisplayPort/DisplayPort output device to the HDMI input of a 4K TV or other display.
The ATEN VC986 is an active adapter, featuring advanced chips which ensure stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++).* Moreover, support for resolutions up to 4K make this adapter ideal for users who require a high performance signal conversion solution.
Note:
* Dual-mode DisplayPort (DP++) can directly process the signal from DisplayPort to HDMI or DVI signals.
* VC986 can only convert DisplayPort signals to HDMI output, and the reverse does not apply.
Key Features
- Converts DisplayPort signals to HDMI output
- Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to 4K UHD
- Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++)*
- Supports AMD Eyefinity™ Technology (multi-screen setups)
- Audio supported
- No software or driver installation required
Technical Specifications
- Video Input
- Interfaces: 1 x DisplayPort Male (White)
- Video Output
- Interfaces: 1 x HDMI Type A Female (Black)
- Video
- Max. Pixel Clock: 297 MHz
- Max. Resolution: 3840x2160@30Hz, 1920 x 1200@60Hz.
- Compliance: DP1.2a, HDMI (3D, Deep Color, 4K), HDCP 1.3
- Audio
- Output: 1 x HDMI Type A Female (Black)
- Environmental
- Operating Temperature: 0-50°C
- Storage Temperature: -20 - 60°C
- Humidity: 0 - 80% RH, Non-Condensing
- Physical Properties
- Housing: Plastic
- Weight: 0.04 kg ( 0.09 lb )
- Dimensions (L x W x H): 18.00 x 4.50 x 1.50 cm (7.09 x 1.77 x 0.59 in.)
What's Included
- 1x VC986 4K DisplayPort to HDMI Active Adapter
- Product Type:
- Video Converters
