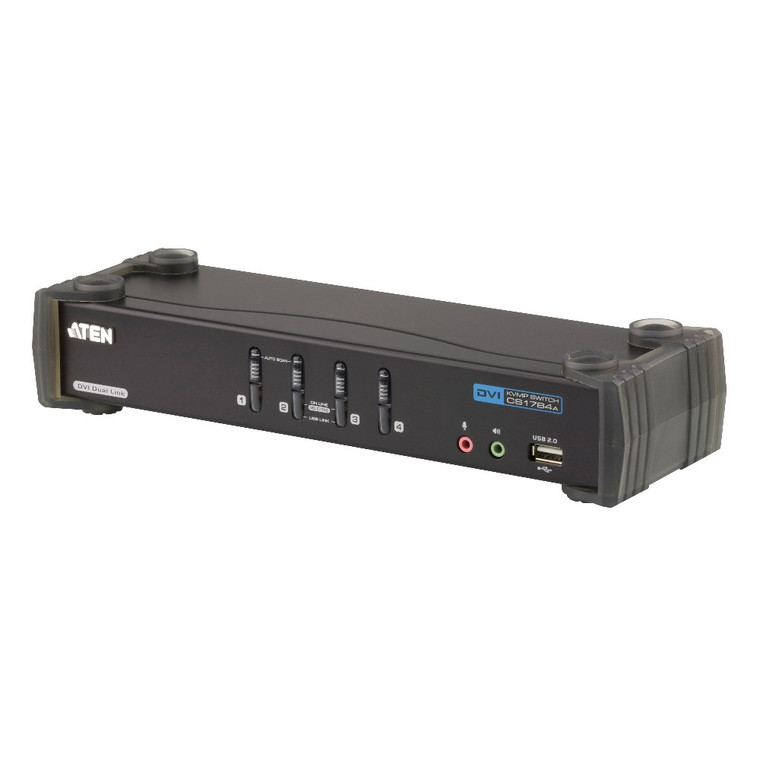

ATEN 4-Port USB DVI Dual Link/Audio KVMP Switch

Key Features

• 4-port DVI KVMP Switch with USB 2.0 and 2.1 Surround Sound Audio
• One USB console controls four computers and two additional USB devices
• 2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
• Full bass response for high quality 2.1 channel surround sound systems
• Computer selection via front panel pushbuttons, hotkeys, and mouse NEW!
• Multiplatform support – Windows, Linux, Mac, and Sun*
• Independent switching of KVM, USB, and Audio focus
• DVI digital and analog monitor support – fully compliant with the DVI specifications
• Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)
• nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
• HDCP compatible
• Support widescreen resolutions
• Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports
• Power on detection – if one of the computers is powered off, the switch will automatically switch to the next powered-on computer NEW!
• Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice
• Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards NEW!
• Complete keyboard emulation for error-free booting
• Mac/Sun keyboard support and emulation*
• Multilingual keyboard mapping – supports English, Japanese, and French keyboards
• Auto Scan Mode for monitoring all computers
• Firmware upgradable

* PC keyboard combinations emulate Mac/Sun keyboards

Mac/Sun keyboard work only with their own

Technical Specifications

• Computer Connections: 4
• Port Selection: Hotkey, Pushbutton, Mouse
• Connectors

  • Console Ports:
    • 1 x DVI-I Female (White)
    • 2 x USB Type A Female (rear panel)
    • 2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear panel)
    • 2 x 3.5mm Audio Jack Female (Pink; 1 x front panel, 1 x rear panel)
  • KVM (Computer) Ports:
    • 4 x DVI-I Female (White)
    • 4 x USB Type B Female
    • 4 x 3.5mm Audio Jack Female (Green)
    • 4 x 3.5mm Audio Jack Female (Pink)
  • Power: 1 x DC Jack
  • USB Hub: 2 x USB Type A Female (1 x front panel, 1 x rear panel)
• Switches

  • Selected: 4 x Pushbutton
• LEDs

  • USB Link: 4 (Green)
  • On Line /Selected: 4 (Orange)
• Emulation

  • Keyboard / Mouse: USB
• Video:
  • DVI Dual Link: 2560 x 1600 @ 60Hz;
  • DVI Single Link: 1920 x 1200 @ 60Hz
• Scan Interval: 1–99 Seconds (Default: 5 sec.)
• Power Consumption
  • DC5.3V:5.91W:53BTU/h
  • Note:
    • The measurement in Watts indicates the typical power consumption of the device with no external loading.
    • The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
• Environmental

  • Operating Temperature: 0-50°C
  • Storage Temperature: -20-60°C
  • Humidity: 0 - 80% RH, Non-condensing
• Physical Properties

  • Housing: Metal
  • Weight: 0.93 kg ( 2.05 lb )
  • Dimensions (L x W x H): 27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.)

What's Included

• 1x CS1784A USB DVI Dual Link KVMP™ Switch
• 4x KVM Cable (DVI-D DL, USB, Audio; 1.8m/6ft)
• 1x Power Adapter
• 1x User Instructions
