Warranty: 2 Years

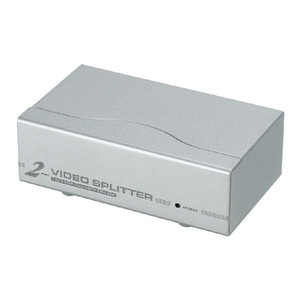

VS102 video splitters provides video input signals to 2 video outputs each at 250 MHz after duplication. Users can boost video signals from the video gain knob within a transfer range up to 65m.
Key Features
- One video input to 2 video outputs.
- Cascadable to 3 levels-provides up to 8 video signals.
- Supports up to 250 MHz bandwidth.
- Long distance transmission - up to 65 m.
- High video resolution - up to 1920 x 1440.
- DDC, DDC2, DDC2B Compatible (Port 1 only).
- Supports VGA, XGA, SVGA, UXGA and multisync monitors.
- OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
- Compact design with convenient topside connection, lays flat on a desktop or mounts on the wall
Technical Specifications
- Display Connections: 2
- Connectors:
- Video In: 1 x HDB-15 Male (Blue)
- Video Out: 2 x HDB-15 Female (Blue)
- Power: 1 x DC Jack (Black)
- Switches:
- Video Gain: 1 x Knob
- LEDs: Power 1
- Video Bandwidth: 250 MHz
- Video: 1920 x 1440 @ 60Hz
- Signal Range: Up to 65m (210')
- Power Consumption: DC9V, 1.89W (Max.)
- Environment:
- Operating Temp.: 0-50°C
- Storage Temp.: -20-60°C
- Humidity: 0-80% RH, Non-condensing
- Physical Properties:
- Housing: Metal
- Weight: 0.19 kg
- Dimensions (L x W x H): 10.40 x 7.90 x 2.80 cm
What's Included
- 1x 2-Port Video Splitter
- 1x 0AD6-1909-03EG Power Adapter
- 1x User Instructions
- Product Type:
- Video Splitters
