ATEN 19" Single Rail LCD Console (PS/2-USB, VGA)

ATEN 19" Single Rail LCD Console (PS/2-USB, VGA)

ATEN
SKU:
CL1000N-ATA-AE

Pricing available upon request

Warranty: 2 Years
Current Stock:
Description

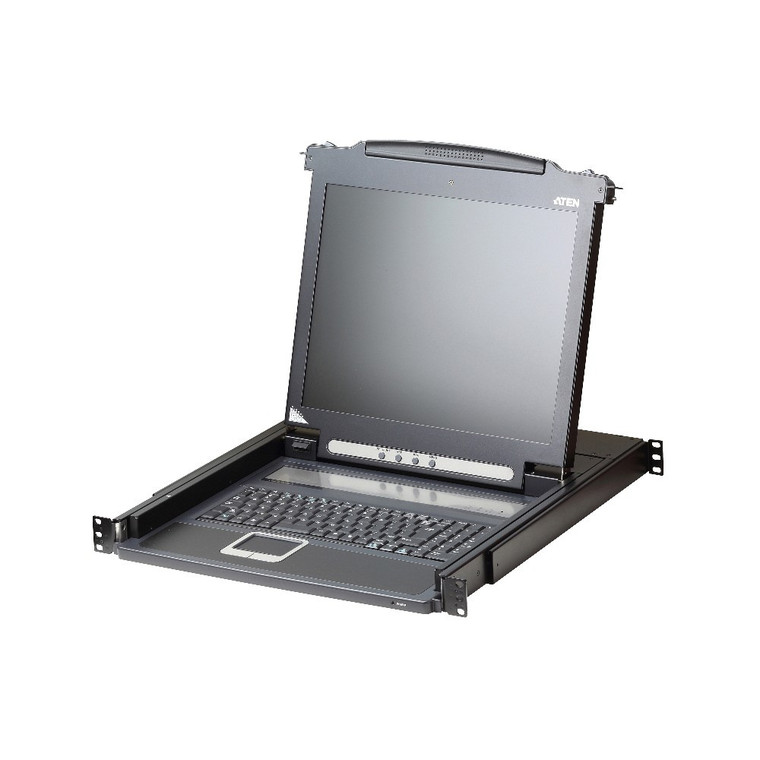

The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" or 19” LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.

Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient 'at the rack' console access to KVM switches already installed at your site.

Note: Optional rack mount kits are available.

Key Features

  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with 17" or 19” LED-backlit LCD monitor – in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack*
  • LCD module rotates up to 120 degrees for a more comfortable viewing angle
  • Slideaway™ housing is less than 1U – with top and bottom clearance for smooth operation in a 1U high system rack
  • Compatible with PS/2 or USB KVM switches when they are connected using custom KVM cables or converters1
  • Internal power supply
  • Adjustable depth to fit within a rack
  • High video resolution:
    • Supports input video resolutions up to 1920 x 1200 @ 60 Hz; and up to 1280 x 1024 @ 75 Hz with the built-in LCD screen
    • Supports DDC, DDC2, DDC2B
    • DDC emulation of the LCD monitor–Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
  • Optional rack mount kits available including easy installation options2

Note:

1. For more information, refer to Compatible Cables below.

2. Contact your ATEN dealer for product information.

* Compatible rack mounting kit:

  • CL1000M: 2X-010G, 2K-0003, 2K-0004
  • CL1000N: 2X-023G, 2K-0003, 2K-0004

Technical Specifications

  • Computer Connections
    • Direct: 1
  • Connectors
    • KVM Ports: 1 x SPHD Female (Yellow)
    • Power: 1 x IEC 60320/C14
  • Switches
    • Reset: N/A
    • Power: N/A
    • LCD Control: 4 x Pushbutton
    • LCD Power: 1 x LED Pushbutton
  • LEDs
    • Power:
      • 1 x KVM Console (Dark Green)
      • 1 x LCD (Orange)
    • Lock:
      • 1 x Num Lock (Green)
      • 1 x Caps Lock (Green)
      • 1 x Scroll Lock (Green)
    • LED Illumination Light: 1 x LED Illumination Light
  • Panel Spec
    • LCD Module: 19" TFT-LCD
    • Resolution: 1280 x 1024 @ 75 Hz
    • Response time: 5 ms
    • Viewing Angle: 170° (H), 160° (V)
    • Pixel Pitch: 0.264 mm x 0.264 mm
    • Support Color: 16.7M colors
    • Contrast Ratio: 1000:1
    • Luminance: 250 cd/m²
  • Video
    • Input Video Resolution: up to 1920 x 1200 @ 60Hz; 1280 x 1024 @ 75 Hz, DDC2B
  • Emulation
    • Keyboard / Mouse: PS/2, USB(via 2L-520xUP cables)
  • Maximum Input Power Rating: 100-240 VAC; 50-60 Hz; 1A
  • Power Consumption:
    • AC110V:29.2W:137BTU/h
    • AC220V:29.3W:137BTU/h
    • Note:
      • The measurement in Watts indicates the typical power consumption of the device with no external loading.
      • The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
  • Environmental
    • Operating Temperature: 0-50˚C
    • Storage Temperature: -20-60˚C
    • Humidity: 0-80% RH, Non-condensing
  • Physical Properties
    • Housing: Metal+Plastic
    • Rail Type: Single Rail
    • Weight: 11.06 kg ( 24.36 lb )
    • Dimensions (L x W x H): 48.30 x 58.52 x 4.40 cm (19.02 x 23.04 x 1.73 in.)

What's Included

  • 1x CL1000M or CL1000N with Standard Rack Mount Kit
  • 1x Custom KVM Cable (VGA, USB; 1.8m/6ft)
  • 1x Power Cord
  • 1x User Instructions
Additional Information
Product Type:
LCD KVM
