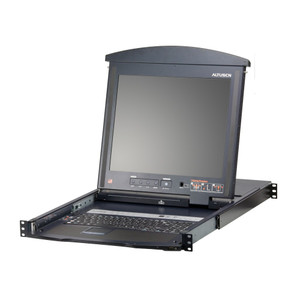

ATEN 17" 8-Port Multi-Interface Cat 5 Dual Rail LCD KVM Switch

ATEN 17" 8-Port Multi-Interface Cat 5 Dual Rail LCD KVM Switch

ATEN
SKU:
KL1508AM-AXA-AE

Pricing available upon request

Warranty: 2 Years
Current Stock:
Description

ATEN KL1508A LCD KVM Switch features independently retractable, dual slide 17" or 19" LED-backlit LCD monitor and keyboard with built-in touchpad. The KL1508A KVM switches are control units that allow IT administrators to access and control multiple computers from the LCD console and an extra PS/2 or USB KVM console.

For increased reliability and efficiency, RJ-45 connectors and Cat 5e / 6 cable are used to link to the computers. Utilizing KVM Adapters for the final linkup, the KL1508A permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.

These switches have been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently.

For example, the advanced Adapter ID feature stores the Adapter's configuration information – such as its ID, port name, OS, keyboard language, etc. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters . Other advances found with these switches includes enhanced video quality – extending the distance to the servers to up to 50 m at a resolution of 1280 x 1024.

A KL1508A installation provides one of the best and most economical solutions ATEN offers to the SMB market. There is no better way to save time, space, and money than with a KL1508A KVM switch.

Note:

*Optional rack mount kits are available.

*The KL1508A does not support virtual media even when paired with a virtual media-enabled KVM adapter.

Key Features

  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Dual Rail housing
  • A single console controls up to 8 computers
  • Space-Saving RJ-45 connectors and Cat 5e / 6 cabling
  • KVM adapters* designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
  • OSD tree structure makes finding and managing computers easy
  • Conveniently located station and port selectors with LED displays to quickly switch to target computers
  • Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operationmm in 1U of rack space
  • Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
  • Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse
  • Dual Rail - LCD monitor slides independently of the keyboard / touchpad
  • LCD module rotates up to 120 degrees for a more comfortable viewing angle
  • Console lock - enables the console drawer to remain securely locked away in position when not in use
  • Dedicated Hotkey Mode and OSD Invocation Keys reduce the number of keystrokes and provide quick access to these functions
  • Daisy chain up to 31 additional KVM switches to control up to 256 computers
  • Auto Scan mode enables continuous monitoring of user-selected computers
  • Multiplatform support: PC, Mac, Sun and Serial
  • Superior Video Quality- supports the video resolutions up to 1280x1024@75 Hz for up to 50 meters
  • Configure port access rights for users on a port - by - port basis
  • Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
  • Multiple User Accounts -supports up to 10 user and 1 administrator accounts
  • Two-Level Password Security- supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation
  • LCD power button helps save energy and prolong displays' life
  • Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
  • Adapter ID
  • Firmware Upgradeable
  • Optional rack mount kits available including easy installation options
  • Keyboard Language support: English(US); English(UK); French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese

Technical Specifications

  • Computer Connections
    • Direct: 8
    • Maximum: 256 (via Daisy-chain)
  • Port Selection: OSD, Hotkey, Pushbuttons
  • Connectors
    • KVM Ports: 8 x RJ-45 Female
    • Daisy Chain Ports: 1 x DB-25 Male
    • Firmware Upgrade: 1 x RJ-11 Female
    • Power: 1 x IEC60320/C14
    • External Console Ports:
      • 1 x HDB-15 Female (Blue)
      • 2 x USB Type A Female
      • 1 x 6-pin Mini-DIN Female (Purple)
      • 1 x 6-pin Mini-DIN Female (Green)
    • External Mouse Port: 1 x USB Type A Female (Front)
  • Switches
    • Port Selection: 8 x Pushbutton
    • Station Selection: 2 x Pushbutton
    • Reset: 1 x Semi-recessed Pushbutton
    • Firmware Upgrade: 1 x Slide Switch
    • Power: 1 x Rocker Switch
    • LCD Control: 4 x Pushbutton
    • LCD Power: 1 x LED Pushbutton
  • LEDs
    • Online: 8 (Green)
    • Selected: 8 (Orange)
    • Power: 1 (Blue)
    • Station ID: 1 x 2 Digit 7-segment (Orange)
    • Lock:
      • 1 x Num Lock(Green)
      • 1 x Caps Lock(Green)
      • 1 x Scroll Lock(Green)
    • LCD Power: 1 (Orange)
    • LED Illumination Light: 1 x LED Illumination Light
  • Panel Spec
    • LCD Module: 17" TFT-LCD
    • Resolution: 1280 x 1024 @75Hz
    • Pixel Pitch: 0.264 mm x 0.264 mm
    • Response time: 5 ms
    • Viewing Angle: 170° (H), 160° (V)
    • Contrast Ratio: 1000:1
    • Support Color: 16.7M colors
    • Luminance: 250 cd/m²
  • Video:
    • Input Video Resolution: 1920 x 1200 @ 60 Hz
    • Second console: 1920 x 1200 @ 60 Hz
  • Emulation
    • Keyboard / Mouse: PS/2; USB
  • Scan Interval: 1-255 Sec.
  • Maximum Input Power Rating: 100-240V AC, 50/60Hz, 1A
  • Power Consumption:
    • AC110V:16.7W:89BTU/h
    • AC220V:18.9W:99BTU/h
    • Note:
      • The measurement in Watts indicates the typical power consumption of the device with no external loading.
      • The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
  • Environmental
    • Operating Temperature: 0-40˚C
    • Storage Temperature: -20-60˚C
    • Humidity: 0-80% RH, Non-condensing
  • Physical Properties
    • Housing: Metal
    • Rail Type: Dual Rail
    • Weight: 15.19 kg ( 33.46 lb )
    • Dimensions (L x W x H): 48.00 x 70.12 x 4.40 cm (18.9 x 27.61 x 1.73 in.)

What's Included

  • 1x KL1508A 8-Port Cat 5 High-Density Dual Rail LCD KVM Switch with Standard Rack Mount Kit
  • 1x Firmware Upgrade Cable
  • 1x Power Cord
  • 1x Extension Kit
  • 1x User Instructions
Additional Information
Product Type:
Cat 5 LCD KVM
